Bulldog is the premiere provider of sealing solutions for heavy equipment worldwide,offering hydraulic cylinder kits,hydraulic pump seal kits, hydraulic breaker seal kits,hydraulic breaker diaphragms and walking motor seal kits, rock drill seal kits.
| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | BULLDOG,NICEPARTS |
| Model Number: | Atlas Copco SB202 |
| Minimum Order Quantity: | MOQ:1set |
| Price: | Consultation by letter |
| Packaging Details: | Carton packaging |
| Delivery Time: | 3-10 Days After Payment received |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal,Alipay |
| Supply Ability: | 100set |
| Material: | PTFE+HNBR+PU | Color: | Blue |
|---|---|---|---|
| AppliCATEion: | Atlas Copco Hydraulic Breaker | Type: | Hydraulic Breaker Seal Kit,Hydraulic Breaker Hammer Seal Kit |
| Weight: | 1KG | TOOL: | 65mm |
| High Light: | 3382070079 Hydraulic Breaker Seal Kit,SB202 Hydraulic Breaker Seal Kit,3382070079 atlas copco breaker parts |
||

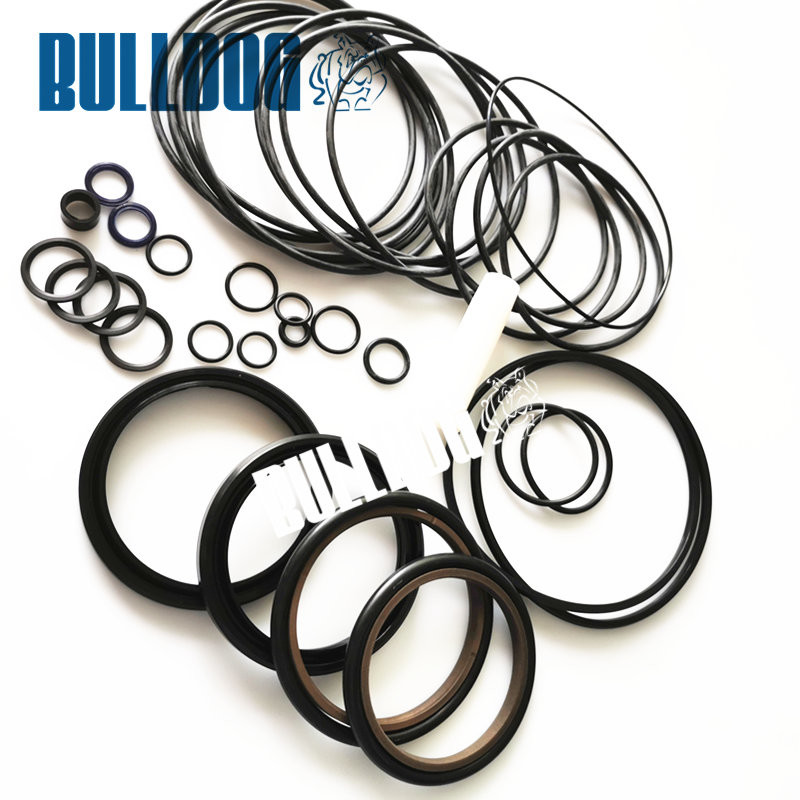

Model:Atlas Copco SB202 Hydraulic breaker Repair service seal kit
Part Name:Hydraulic breaker seal kit, Hydraulic hammer seal kit
Tool:65MM
Part Number:3382070079
Material:TPU+HNBR+PTFE
Packaging Details: bag or box +carton
CertifiCATEEion:IOS 9001
Delivery Time: 2-5days upon payments confirmed
Position:Atlas Copco Hydraulic Breaker Systerm
Brand:Bulldog, OEM or as Required
Payment Terms:T/T, Western Union, MoneyGram,Paypal,Alipay
Supply Ability:500
MOQ:1set
Parts list
| No. | Description | Quantity | Part number |
| 1 | Breaker body | 1 | |
| 2(3-5) | Bushing standard, complete | 1 | 3315 3540 80 |
| 3 | Bushing | 1 | |
| 4 | Scraper ring | 1 | 3315 3562 00 |
| 5 | O-ring | 4 | 0663 2104 98 |
| 6 | Stop ring | 1 | 3315 2778 00 |
| 7 | Plug | 1 | 0686 1000 09 |
| 8 | Plug | 7 | 0686 6442 07 |
| 9 | Water nozzle, option | 1 | 3315 3952 00 |
| 10 | Lock pin | 1 | 3315 1350 00 |
| 11 | Spring pin, option | 1 | 0108 1691 27 |
| 12 | Tool retainer | 2 | 3315 1349 00 |
| 13 | Lock buffer | 1 | 3315 1419 00 |
| 14 | Hexagon socket plug | 4 | 0686 3718 01 |
| 15 | Coil spring | 1 | 3315 2933 00 |
| 16 | Diaphragm support | 1 | 3315 2889 00 |
| 17 | Diaphragm | 1 | 3315 2890 00 |
| 18 | Accumulator house | 1 | 3315 2824 00 |
| 19 | Hexagon socket screw | 8 | 0211 1965 34 |
| 20 | Plug | 1 | 0686 3718 05 |
| 21 | Seal ring | 1 | 3315 3290 02 |
| 22 | O-ring | 1 | 0663 2120 00 |
| 23 | Charge valve | 1 | 3315 3660 00 |
| 24 | Parallel pin | 1 | 0101 4140 00 |
| 25 | O-ring | 1 | 0663 2114 00 |
| 26(27-29) | Nipple, complete | 1 | 0570 7000 03 |
| 27 | Nipple | 1 | |
| 28 | Seal ring | 1 | 0664 0000 03 |
| 29 | O-ring | 1 | 0663 9055 01 |
| 30 | Cap | 2 | 0570 7000 19 |
| 31 | Grease nipple | 1 | 0544 2153 00 |
| 32 | Plug | 1 | 3315 3052 00 |
| 33 | O-ring | 1 | 0663 9032 01 |
| 34(35-37) | Pressure relief valve, complete | 1 | 3315 3349 00 |
| 35 | Pressure relief valve | 1 | |
| 36 | O-ring | 1 | 0663 9032 01 |
| 37 | O-ring | 1 | 0663 9054 01 |
| 38 | Seal | 2 | 0665 0900 14 |
| 39 | Plug | 1 | 3315 3011 00 |
| 40 | Wiper | 1 | 0665 9099 56 |
| 41 | Piston rod seal | 1 | 0665 0701 30 |
| 42 | O-ring | 9 | 0663 2104 94 |
| 43 | O-ring | 1 | 0663 2101 73 |
| 44 | Liner | 1 | 3315 2774 00 |
| 45 | Piston | 1 | 3315 2773 00 |
| 46 | Piston rod seal | 1 | 0665 0701 29 |
| 47 | Back head | 1 | 3315 2931 00 |
| 48(49-50) | Check valve, complete | 1 | 3315 2448 81 |
| 49 | Check valve | 1 | - |
| 50 | Valve rubber | 1 | 3315 2808 00 |
| 51 | Hexagon head screw | 8 | 0147 1481 03 |
| 52 | Slide cover | 1 | 3315 3598 00 |
| 53 | O-ring | 2 | 0663 2114 44 |
| 54 | Control valve | 1 | 3315 2776 00 |
| 55 | Base plate, option | 1 | 3315 2951 00 |
| 56(57-58) | Set of eight screws, complete | 1 | 3315 2964 90 |
| 57 | Screw | 8 | - |
| 58 | Nut | 8 | - |
| 59 | Back pressure valve | 1 | 3315 3040 80 |
Parts exploded view
Company warehouse
FAQ
1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.
2. Q: Can i make a small order first?
A: Yes, of course.
3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.
4. Q: Have you support the OEM or not?
A: Sure, we support the OEM,BULLDOG or as required.
5. Q: How can i pay the goods?
A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc
6. Q: How to ship the products?
A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.
7. Q: What’s the delivery time?
A: The goods can be shipped at 2-5 working days after receiving payment.
