Bulldog is the premiere provider of sealing solutions for heavy equipment worldwide,offering hydraulic cylinder kits,hydraulic pump seal kits, hydraulic breaker seal kits,hydraulic breaker diaphragms and walking motor seal kits, rock drill seal kits.
| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | BULLDOG,NICEPARTS |
| Model Number: | Atlas Copco SB552 |
| Minimum Order Quantity: | MOQ:1set |
| Price: | Consultation by letter |
| Packaging Details: | Carton packaging |
| Delivery Time: | 3-10 Days After Payment received |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal,Alipay |
| Supply Ability: | 100set |
| Material: | PTFE+HNBR+PU | Color: | Blue |
|---|---|---|---|
| AppliCATEion: | Furukawa Hydraulic Breaker | Type: | Hydraulic Breaker Seal Kit,Hydraulic Breaker Hammer Seal Kit |
| Weight: | 1KG | TOOL: | 100mm |
| High Light: | 3315303690 hydraulic breaker parts,SB552 hydraulic breaker parts,PTFE rock drill seals |
||

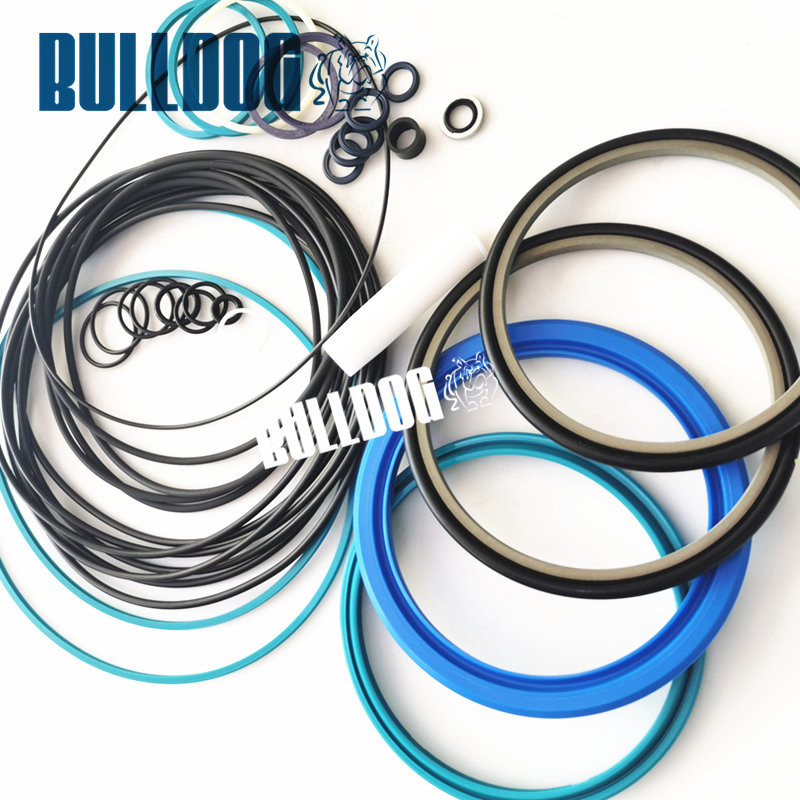

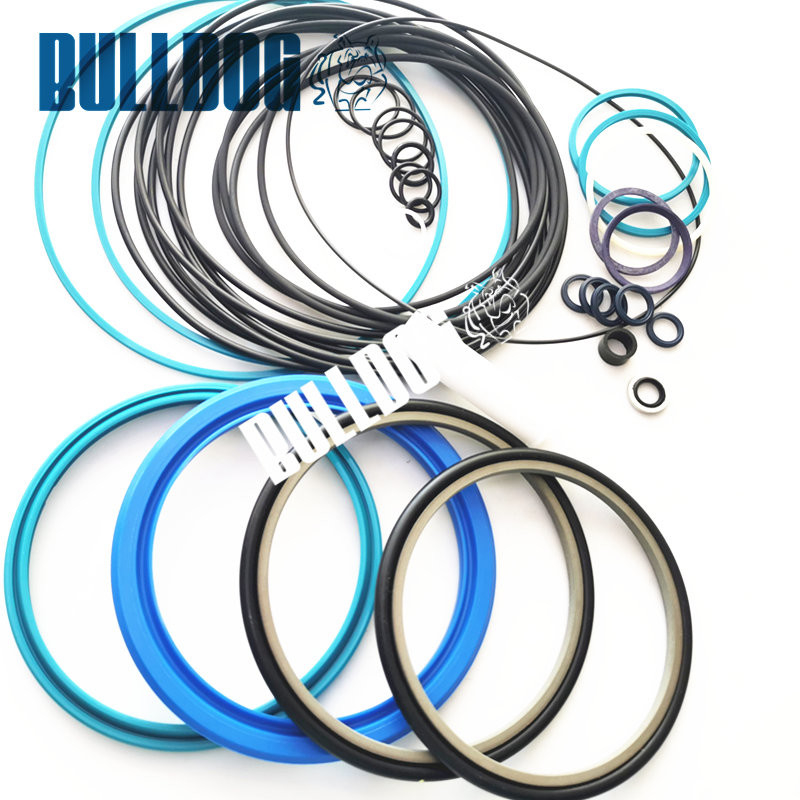

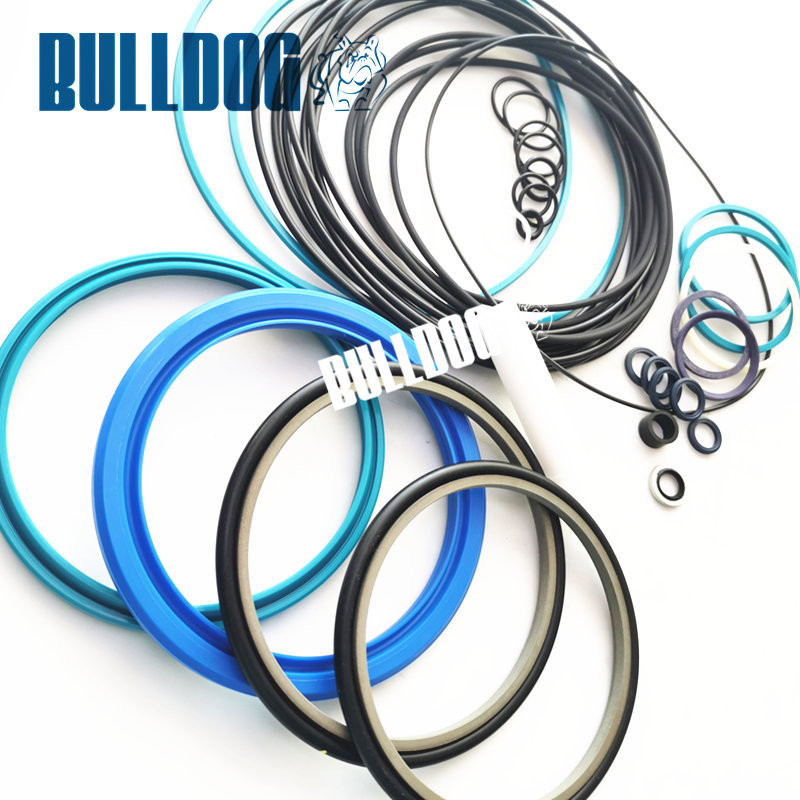

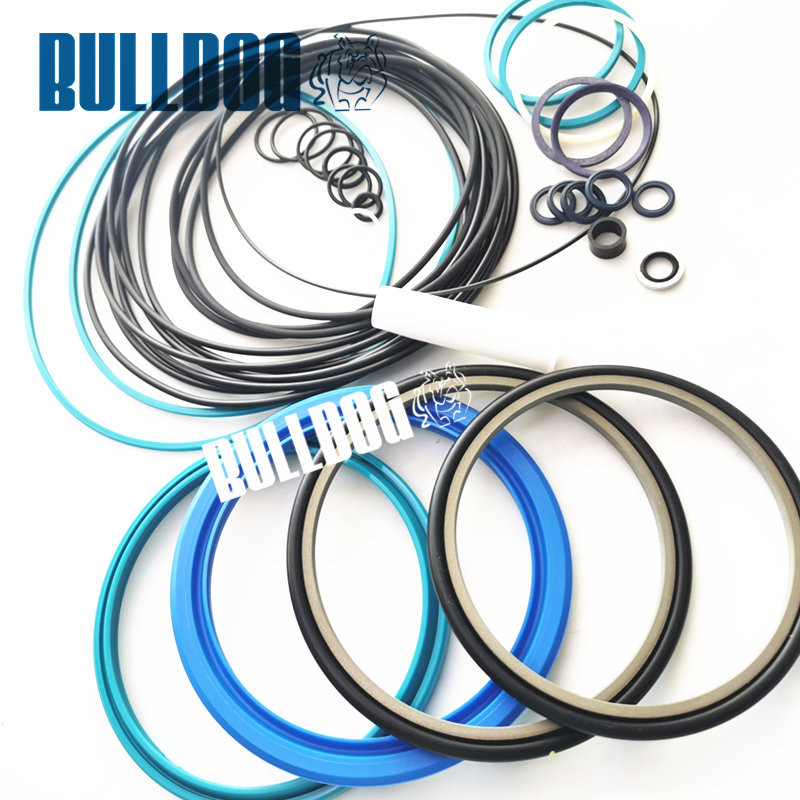

Model:Atlas Copco SB552 Hydraulic breaker seal kit
Part Name:Hydraulic breaker seal kit, Hydraulic hammer seal kit
Tool:100MM
Part Number:3315 3036 90
Material:TPU+HNBR+PTFE
Packaging Details: bag or box +carton
CertifiCATEEion: IOS 9001
Delivery Time: 2-5days upon payments confirmed
Position:Atlas Copco Hydraulic Breaker Systerm
Brand:TOPARTS, OEM or as Required
Payment Terms: TT/Paypal/WEST UNION
Supply Ability: 500
MOQ:1set
Parts list
| No. | Description | Quantity | Part number |
| 1 | Breaker body | 1 | |
| 2(3-5) | Bushing, complete | 1 | 3315 3029 80 |
| 3 | Bushing | 1 | |
| 4 | Scraper ring | 1 | 3315 3030 00 |
| 5 | O-ring | 4 | 0663 2108 23 |
| 6 | Stop ring | 1 | 3315 3028 00 |
| 7 | Plug | 2 | 0686 1000 09 |
| 8 | Plug | 7 | 0686 6442 07 |
| 9 | Water nozzle | 2 | 3315 3952 00 |
| 10 | Lock pin | 1 | 3315 3191 00 |
| 11 | Spring pin | 1 | 0108 1691 29 |
| 12 | Tool retainer | 2 | 3315 3059 00 |
| 13 | Lock buffer | 1 | 3315 1419 00 |
| 14 | Plug | 4 | 0686 3718 01 |
| 15 | Coil spring | 1 | 3315 3035 00 |
| 16 | Diaphragm support | 1 | 3315 3032 01 |
| 17 | Diaphragm | 1 | 3315 3033 00 |
| 18 | Diaphragm cover | 1 | 3315 3031 00 |
| 19 | Hexagon socket screw | 10 | 0211 1965 44 |
| 20 | Plug | 1 | 0686 3718 05 |
| 21 | Seal ring | 1 | 3315 3290 02 |
| 22 | O-ring | 1 | 0663 2120 00 |
| 23 | Charge valve | 1 | 3315 3660 00 |
| 24 | O-ring | 1 | 0663 2114 00 |
| 25 | Parallel pin | 1 | 0101 4140 00 |
| 26(27-30) | Pressure relief valve, complete | 1 | 3315 3658 00 |
| 27 | Pressure relief valve | 1 | |
| 28 | O-ring | 1 | 9125 6211 00 |
| 29 | O-ring | 1 | 0663 2104 21 |
| 30 | Back-up ring | 1 | 0661 2004 01 |
| 31 | Control valve | 1 | 3315 3121 00 |
| 43(44-46) | Restrictor standard, complete | 1 | 3315 3696 55 |
| 44 | Restrictor, standard | 1 | |
| 45 | O-ring | 1 | 0663 2104 21 |
| 46 | O-ring | 1 | 9125 6211 00 |
| 47 | Wiper | 1 | 0665 9099 49 |
| 48 | Piston rod seal | 1 | 0665 0701 34 |
| 49 | Beanseal | 2 | 0663 9900 27 |
| 50 | Liner | 1 | 3315 3025 00 |
| 51 | O-ring | 7 | 0663 2113 03 |
| 52 | O-ring | 1 | 0663 2115 06 |
| 53 | Piston | 1 | 3315 3024 00 |
| 54 | Piston rod seal | 1 | 0665 0701 33 |
| 55 | Back head | 1 | 3315 3034 00 |
| 56 | Hexagon head screw | 8 | 0147 1555 03 |
| 57(58-59) | Check valve, complete | 1 | 3315 2448 81 |
| 58 | Check valve | 1 | - |
| 59 | Valve rubber | 1 | 3315 2808 00 |
| 60 | Base plate, option | 1 | 3315 3077 00 |
| 61(62-63 ) | Set of screws, complete | 1 | 3315 3239 90 |
| 62 | Screw | 14 | - |
| 63 | Nut | 14 |
Parts exploded view
Company warehouse
FAQ
1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.
2. Q: Can i make a small order first?
A: Yes, of course.
3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.
4. Q: Have you support the OEM or not?
A: Sure, we support the OEM,BULLDOG or as required.
5. Q: How can i pay the goods?
A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc
6. Q: How to ship the products?
A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.
7. Q: What’s the delivery time?
A: The goods can be shipped at 2-5 working days after receiving payment.
