Bulldog is the premiere provider of sealing solutions for heavy equipment worldwide,offering hydraulic cylinder kits,hydraulic pump seal kits, hydraulic breaker seal kits,hydraulic breaker diaphragms and walking motor seal kits, rock drill seal kits.
| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | BULLDOG,NICEPARTS |
| Model Number: | VOE14589125 EC Bucket Seal Kit Hydraulic Cylinder 14589125 For EC120D EC210C EW145B Excavator |
| Minimum Order Quantity: | 1set |
| Price: | Consultation by letter |
| Packaging Details: | Carton packaging |
| Delivery Time: | 3-10 Days After Payment received |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal,Alipay |
| Supply Ability: | 100set |
| Type: | VOE14589125 EC Bucket Seal Kit Hydraulic Cylinder 14589125 For EC120D EC210C EW145B Excavator | Material: | PU+NBR+PTFE |
|---|---|---|---|
| Color: | Black+Blue+yellow | For: | Hyundai Hydraulic System |
| Quality: | High-Quality | Rod: | 70mm |
| Piston: | 100mm | Condition: | 100%new |
| Stock: | In Stock | Model: | Hyundai Bulldozer |
| High Light: | VOE14589125 Bucket Seal Kit,EC120D Bucket Seal Kit,EW145B Hydraulic Cylinder Repair Kits |
||

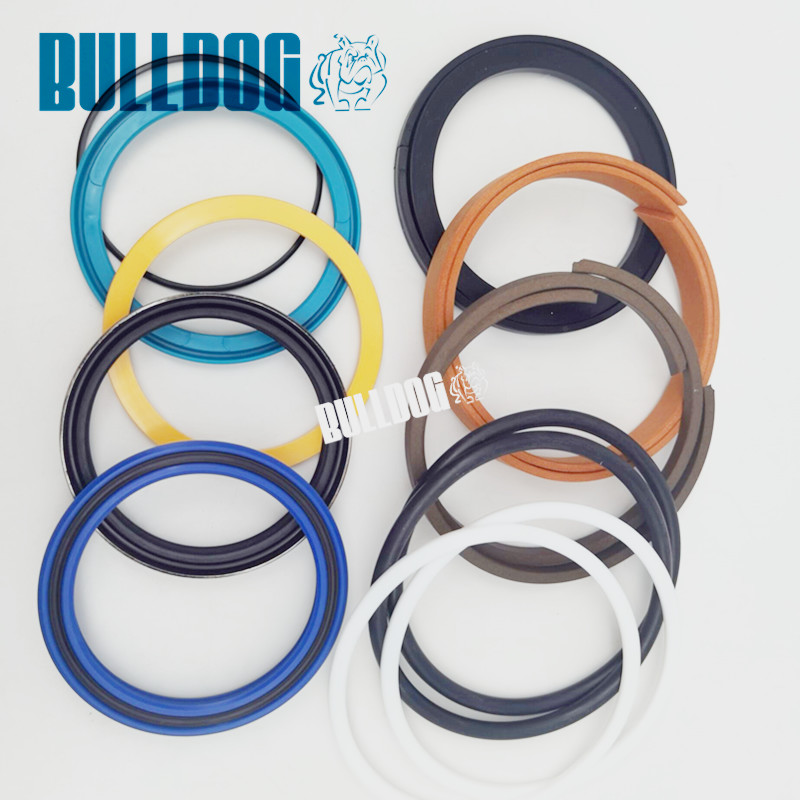

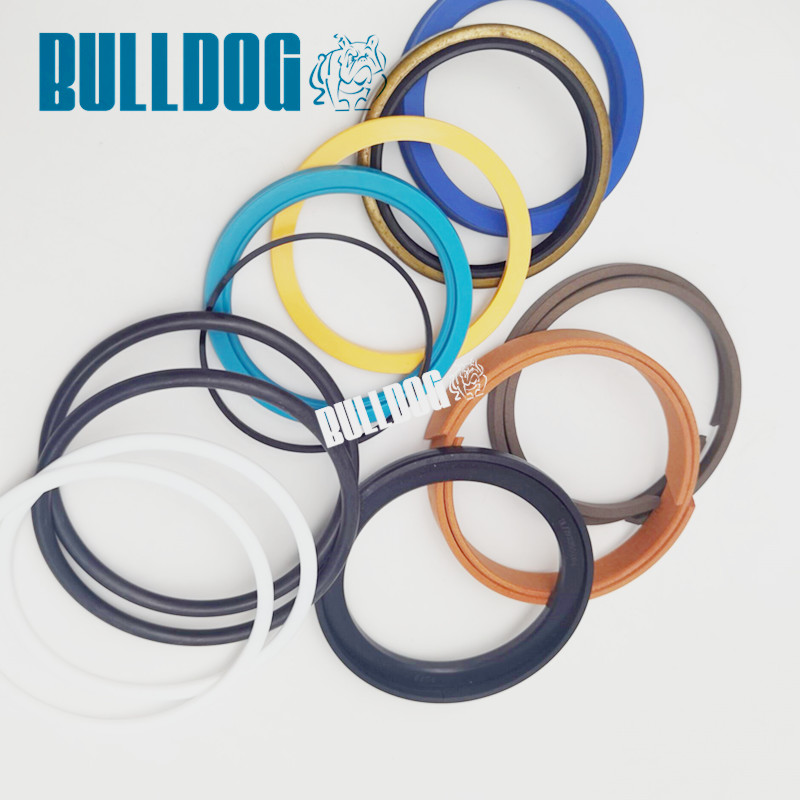

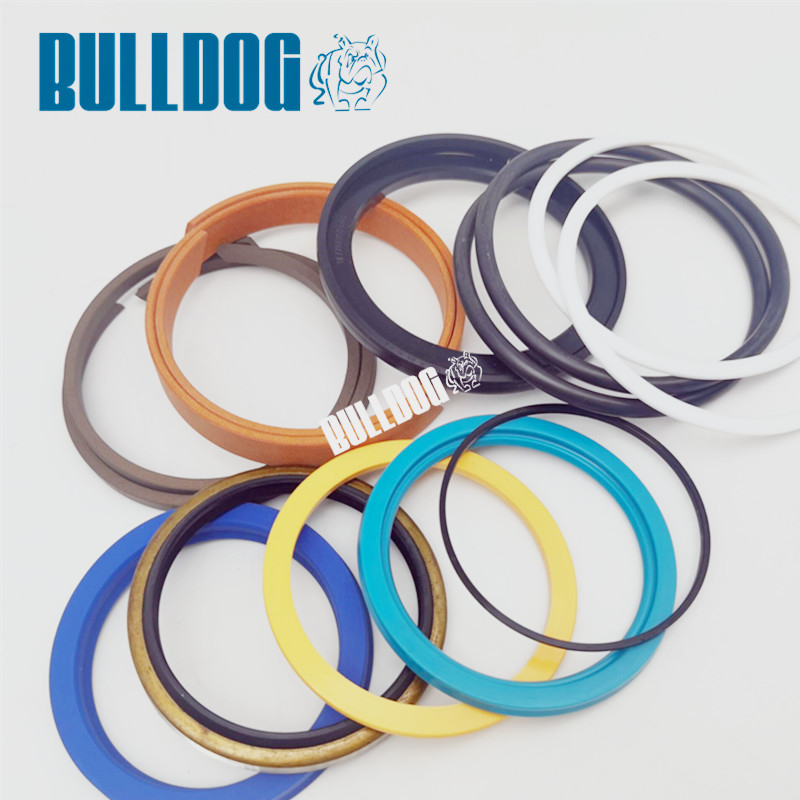

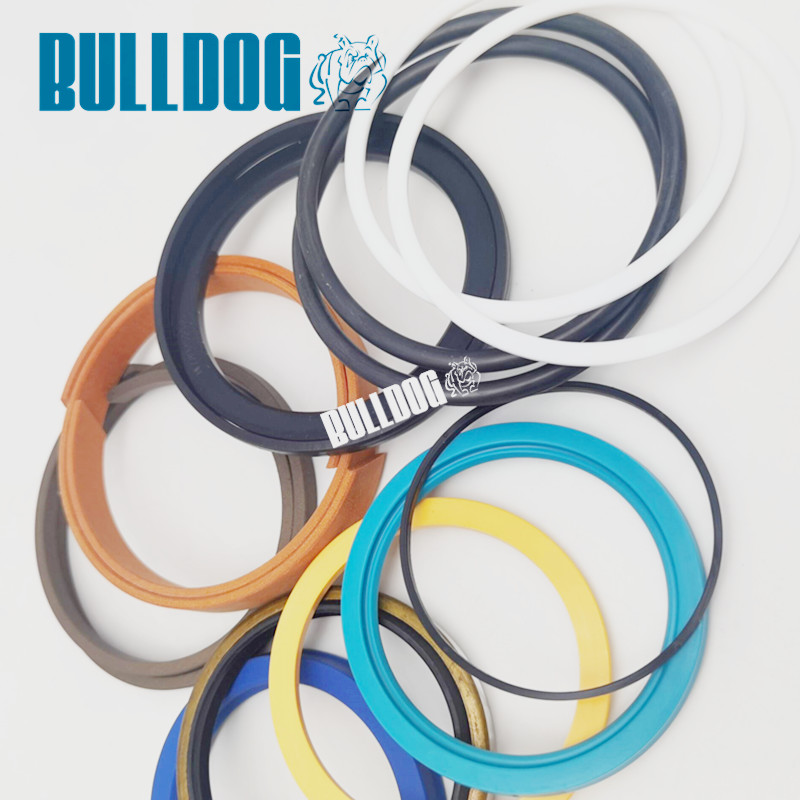

VOE14589125 EC Bucket Seal Kit Hydraulic Cylinder 14589125 For EC120D EC210C EW145B Excavator
| Product Name | 14589125 EC Lift Cylinder Seal Kit |
| Model Number |
EC EC120D, EC140C, EC140D, EC140E, EC210C, EC210D, EC220D, EC220E, EC240B, EC240C, EC250D, EC250E, EC290B, EC290C, EC300D, EC300E, ECR145C, ECR145D, ECR145E, EW145B |
| Material | PTFE, HNBR, ACM, PU, Rubber, NBR, VMQ, |
| Feature | Corrosion resistance, abrasion resistant, low cost, etc. |
| Packing | PP bag inside, carton box outside |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| MOQ | Trial order acceptable |
| Shipping Mode | By air, by sea, by express (FedEx, UPS, DHL, TNT, etc.) |
| Part No. | VOE14589125, 14589125 |
| Brand name | BULLDOG |
| CertifiCATEEion | ISO9001 |
| Market | Eastern Europe, Middle East, North America, etc. |
| Condition |
100% new, unopened |
Parts list:
| Pos. | Part No. | QTY | Parts Name |
| VOE14536959 | [1] | Bucket cylinder | |
| VOE14554982 | Bucket cylinder | ||
| 1 | [1] | Tube | |
| 2 | VOE14517946 | [1] | Bushing |
| 3 | VOE14503887 | [2] | Seal |
| 4 | VOE914167 | [1] | LubriCATEEing nipple |
| 5 | VOE14543851 | [1] | Rod |
| 6 | VOE14517949 | [1] | Bushing |
| 7 | VOE14560203 | [2] | Seal |
| 8 | VOE914167 | [1] | LubriCATEEing nipple |
| 9 | [1] | Head | |
| 10 | SA9612-07040 | [1] | Bearing |
| 11 | SA9557-06000 | [1] | Retaining ring |
| 12 | SA9556-07000 | [1] | Retaining ring |
| 13 | VOE14522847 | [1] | Cushion |
| 14 | [1] | Piston | |
| 15 | VOE14549124 | [1] | Washer |
| 16 | VOE14524623 | [1] | Lock nut |
| 17 | VOE14535763 | [1] | Screw |
| 18 | VOE13949445 | [11] | Screw |
| 19 | SA9564-20700 | [1] | Seal |
| 20 | SA9567-20701 | [1] | Back-up ring |
| 21 | SA9563-20701 | [1] | Seal |
| 22 | SA1146-08170 | [1] | Seal |
| 23 | SA9566-10900 | [1] | Back-up ring |
| 24 | VOE990640 | [1] | O-ring |
| 25 | SA9566-40950 | [1] | Back-up ring |
| 26 | VOE990595 | [1] | O-ring |
| 27 | SA9566-30600 | [1] | Back-up ring |
| 28 | VOE990633 | [1] | O-ring |
| 29 | VOE14510892 | [1] | Seal |
| 30 | SA9568-01000 | [2] | Seal |
| 31 | SA9565-11000 | [2] | Wear ring |
| 100 | VOE14589125 | [1] | Sealing kit |
Main Products:
| Main Products |
| Engine parts: Engine parts: Cylinder block, Cylinder head, Crankshaft, Camshaft, Connecting rod, Engine assy, Injector, Fuel injection pump, Oil pump, Feed pump, Oil cooler, Filter, Turbo charger, Starter, Alternator, Water pump, Fan blade, Liner kits, Bearings, Valves, Gasket kit, etc. |
| Hydraulic parts: Hydraulic pump, Hydraulic spare parts, Travel motor, Swing motor, Travel gearbox, Swing gearbox, Main control valve, Hydraulic cylinder assy, Gear pump, Hydraulic motor, Swivel/Center Joint, Conversion kit, etc. |
| Cabin parts: Excavator cabin, Cabin door, Side door panel, Cabin seat, Cabin glass, Engine cover, Tool box, Door lock, etc. |
| Electric Parts: Controller, Monitor, Panel, Throttle motor, Solenoid valve, Sensor, Switch, Stop solenoid, Thermostat, Harness, etc. |
| Other Parts: Seal kit, Floating seal, O-ring box, Engine cushion, Gear, Radiator, Hydraulic oil cooler, etc |
The Following Are The Models Of Excavators We Can Provide:
| KOMATSU |
PC30 PC40 PC50 PC55 PC60 PC70 PC100 PC120 PC130 PC200 PC220 PC240 PC300 PC360 PC400 PC460 |
| HITACHI | EX60 EX100 EX120 EX200 EX220 EX230 EX300 EX330 EX400 EX450 |
| ZAX70 ZAX130 ZAX120 ZAX210 ZAX200 ZAX240 ZAX330 ZAX450 | |
| DOOSAN | DH55 DH130 DH220 DH200 DH280 DH290 DH320 DH450 |
| HUNDAI | R200 R210 R215 R225 R280 R290 R320 R450 |
| KATO |
HD250 HD400 HD450 HD550 HD512 HD7000 HD800 HD820 HD900 HD1023 HD1250 HD1880 HD1430 |
| KOBELCO |
SK07 SK09 SK60 SK100 SK120 SK200 SK230 SK250 SK260 SK300 SK400 |
| EC | EC55 EC130 EC210 EC240 EC290 EC360 EC450 |
| CATEE |
E110B E200B E320 E240 E300B E330 D3C D5 D5B D5D D6C D6D D6H D7G D8K |
Parts exploded view
Company warehouse
FAQ
1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.
2. Q: Can i make a small order first?
A: Yes, of course.
3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.
4. Q: Have you support the OEM or not?
A: Sure, we support the OEM,BULLDOG or as required.
5. Q: How can i pay the goods?
A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc
6. Q: How to ship the products?
A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.
7. Q: What’s the delivery time?
A: The goods can be shipped at 2-5 working days after receiving payment.
