Bulldog is the premiere provider of sealing solutions for heavy equipment worldwide,offering hydraulic cylinder kits,hydraulic pump seal kits, hydraulic breaker seal kits,hydraulic breaker diaphragms and walking motor seal kits, rock drill seal kits.
| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | BULLDOG,NICEPARTS |
| Model Number: | Wear Resistance Service Kit 31Y1-23190 Arm Seal Kit Hydraulic Cylinder Fits For Hyundai R110-7 RD110-7 |
| Minimum Order Quantity: | 1set |
| Price: | Consultation by letter |
| Packaging Details: | Carton packaging |
| Delivery Time: | 3-10 Days After Payment received |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal,Alipay |
| Supply Ability: | 100set |
| Type: | Wear Resistance Service Kit 31Y1-23190 Arm Seal Kit Hydraulic Cylinder Fits For Hyundai R110-7 RD110-7 | Material: | PU+NBR+PTFE |
|---|---|---|---|
| Color: | Black+Blue+yellow | For: | KOMATSU Hydraulic System |
| Quality: | High-Quality | Rod: | 75mm |
| Piston: | 110mm | Condition: | 100%new |
| Stock: | In Stock | Model: | Komatsu Bulldozer |
| High Light: | 31Y1-23190 Hydraulic Seal Repair Kit,R110-7 Hydraulic Seal Repair Kit,Wear Resistance Hydraulic Seal Repair Kit |
||

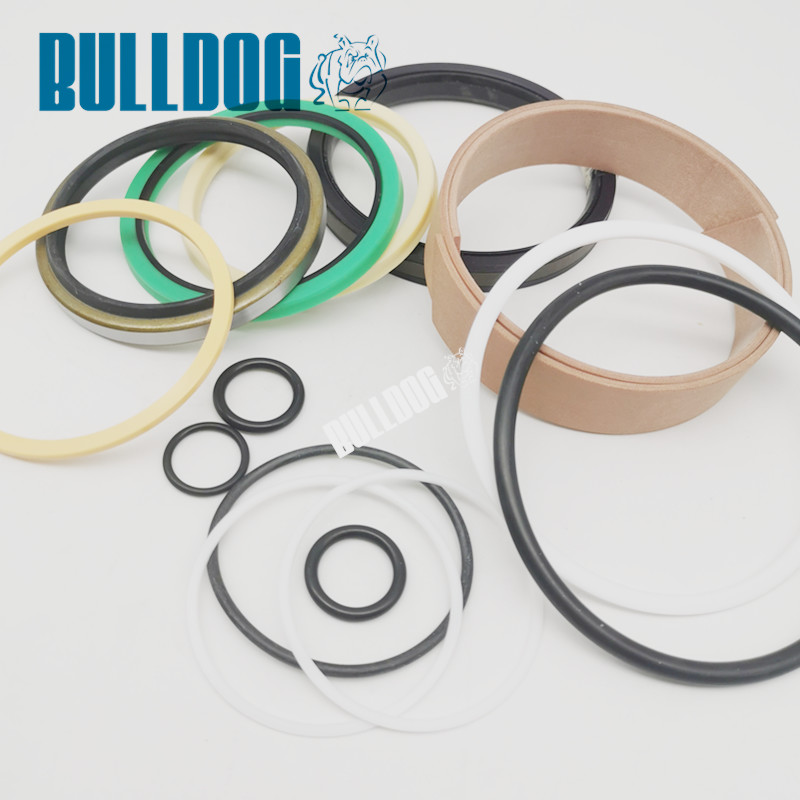

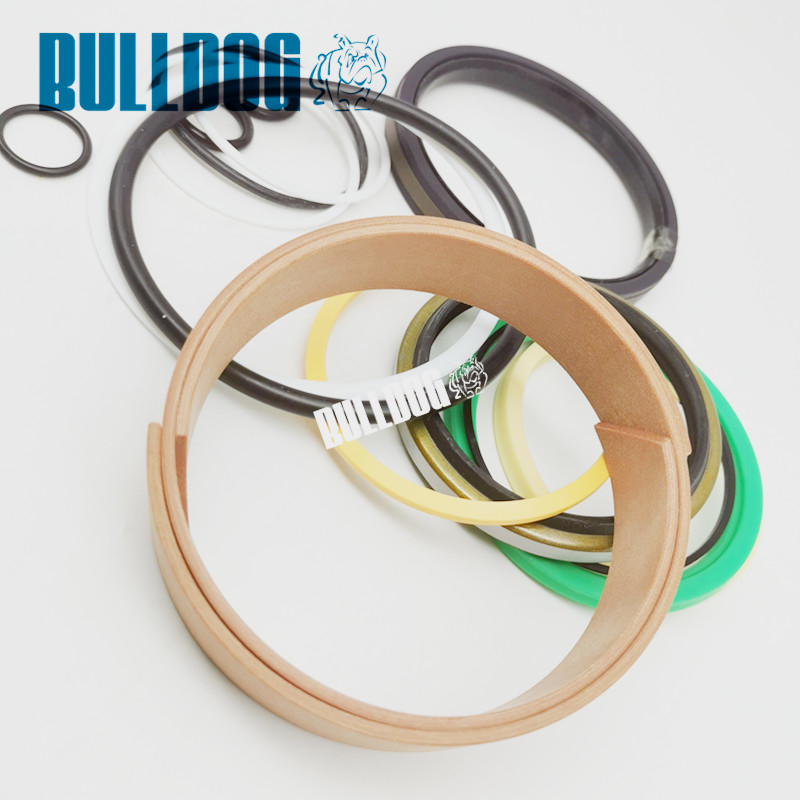

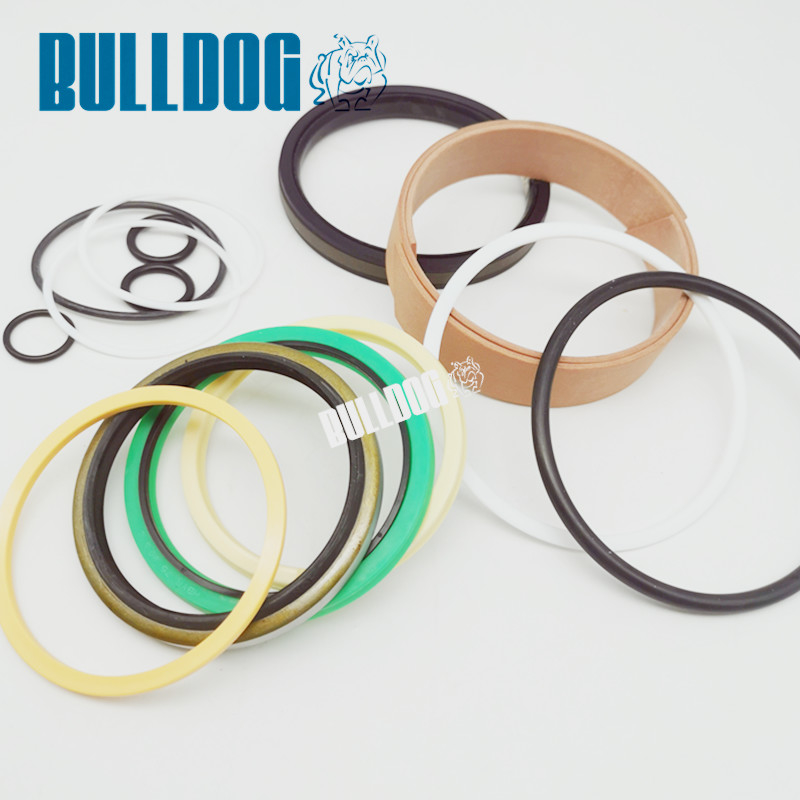

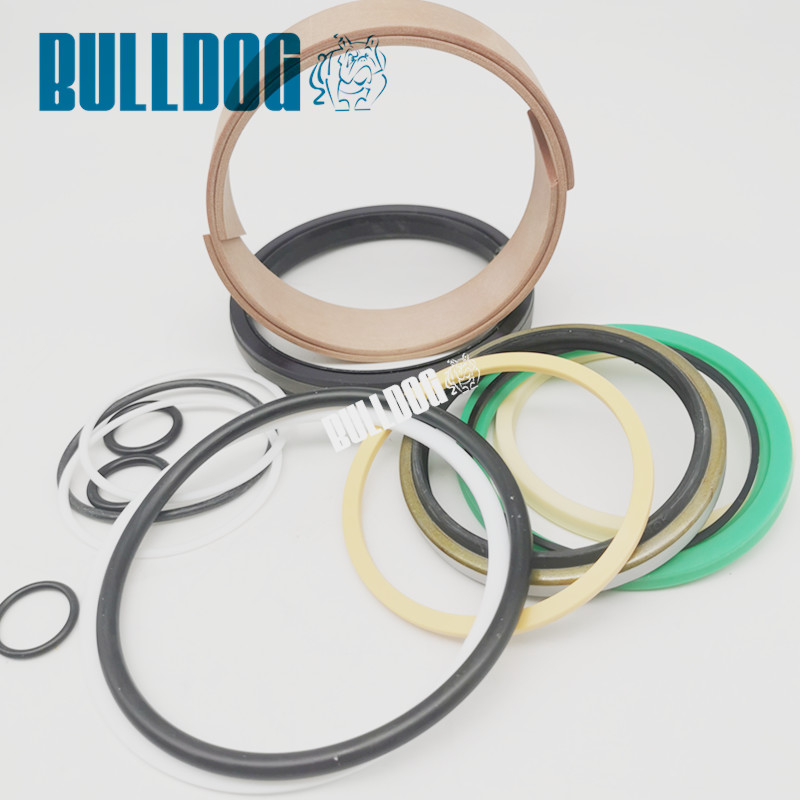

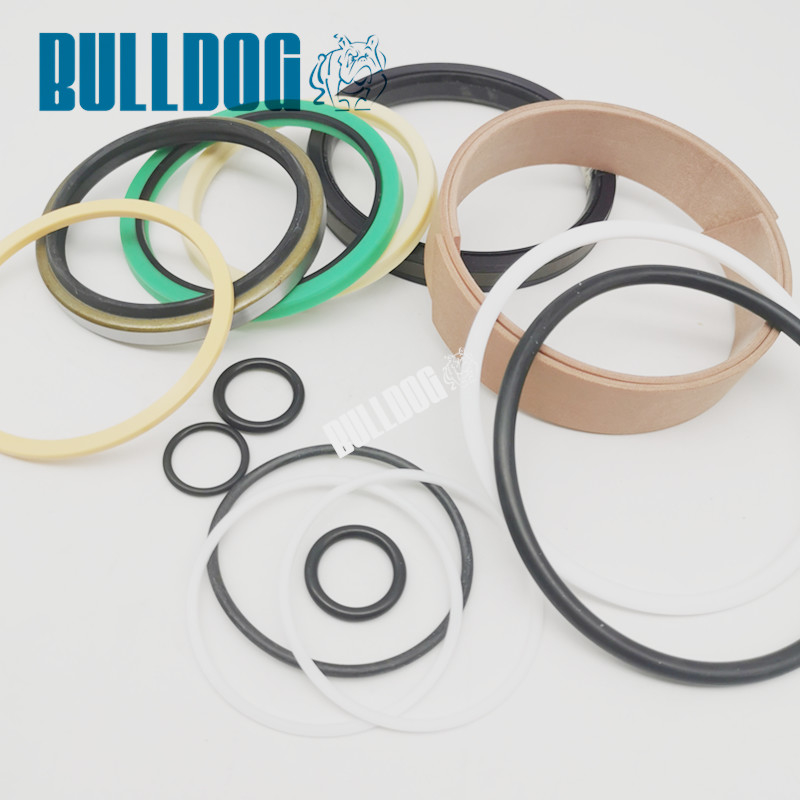

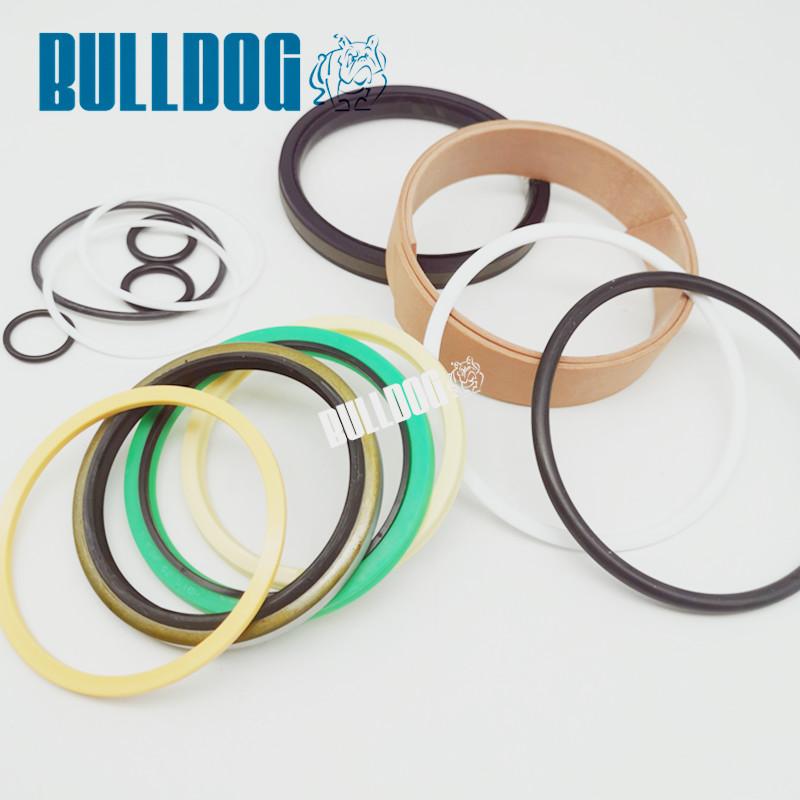

Wear Resistance Service Kit 31Y1-23190 Arm Seal Kit Hydraulic Cylinder Fits For Hyundai R110-7 RD110-7
| Product Name | Cylinder Seal Kit |
| Model Number |
7-SERIES CRAWLER EXCAVATOR R110-7, R110-7A, RD110-7(INDIA) Hyundai |
| Place of Origin | China(Mainland) |
| Brand name | BULLDOG |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 31Y1-23190 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size |
| Applicable Industries | Machinery repair shops, construction works, energy & mining |
| CertifiCATEEion | ISO9001 |
| Condition | 100% New |
| CATEEegory | Hydraulic cylinder seal kit |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Feature | Long service life, high chemical resistance, durable |
| Preservation Notice | Closed, dry and avoid the sun |
| Related Brands | Komatsu, Hitachi, Sumitomo, Doosan, Daewoo, Hyundai, CATEE, EC, Kato... |
Parts list:
| Pos. | Part No | QTY | Product Name |
| *. | 31N3-50130 | [1] | CYLINDER ASSY |
| *. | 31N3-50132 | [1] | ARM CYLINDER ASSY |
| *. | 31N3-50133 | [1] | ARM CYLINDER ASSY |
| *-1. | 31Y1-23020 | [1] | ARM CYLINDER SUB ASSY |
| *-1. | 31Y1-23022 | [1] | ARM CYL SUB ASSY |
| 1 | 31Y1-23030 | [1] | TUBE ASSY |
| 1 | 31Y1-23031 | [1] | TUBE ASSY |
| 2 | 31Y1-23080 | [1] | ROD ASSY |
| 2 | XKCC-01333 | [1] | ROD ASSY |
| 3 | 31Y1-23110 | [1] | GLAND |
| 3 | 31Y1-23111 | [1] | GLAND |
| 3 | XKCC-01334 | [1] | GLAND |
| 4 | S732-075040 | [1] | BUSHING-DD2 |
| 5 | Y191-081000 | [1] | RING-SNAP |
| K6. | Y220-075011 | [1] | SEAL-ROD |
| K6. | XKCC-01012 | [1] | SEAL-ROD |
| K7. | Y180-075020 | [1] | RING-BACK UP |
| K8. | Y240-075013 | [1] | RING-BUFFER |
| K8. | XKCC-01023 | [1] | RING-BUFFER |
| K9. | Y110-075011 | [1] | WIPER-DUST |
| K9. | XKCC-01022 | [1] | WIPER-DUST |
| 10 | Y190-089000 | [1] | RING-SNAP |
| K11. | XCAV-00112 | [1] | O-RING |
| K12. | XCAV-00113 | [1] | RING-BACKUP,O-RING |
| 13 | XKCC-01145 | [1] | RING-CUSHION |
| 13 | XKCC-01335 | [1] | CUSHION RING |
| 14 | 31Y1-23120 | [1] | PISTON |
| 14 | XKCC-01336 | [1] | PISTON |
| K15. | S632-060004 | [1] | O-RING |
| K15. | XKCC-01337 | [1] | O-RING |
| K16. | S642-060003 | [2] | RING-BACK UP |
| K16. | XKCC-01338 | [2] | BACK UP RING |
| K17. | XCAV-00116 | [1] | SEAL-PISTON |
| K17. | XKCC-00770 | [1] | PISTON SEAL |
| K18. | Y310-110000 | [2] | RING-WEAR |
| K18. | XKCC-01017 | [2] | RING-WEAR |
| K19. | XCAV-00118 | [2] | RING-DUST |
| 20 | 31YC-29250 | [1] | SPACER-CUSHION |
| 20 | XKCC-01339 | [1] | CUSHION SPEAR |
| 21 | Y890-015011 | [12] | BALL-STEEL |
| 21 | XKCC-01340 | [12] | PARALLEL PIN |
| 22 | S114-080084 | [1] | SCREW-SET |
| 22 | XKCC-01341 | [1] | PISTON NUT |
| 23 | 31YC-61280 | [1] | NUT-LOCK |
| 23 | XKCC-01342 | [1] | SET SCREW |
| 24 | S109-140854 | [12] | BOLT-SOCKET |
| 24 | S109-140854 | [14] | BOLT-SOCKET |
| 24 | XKCC-01148 | [14] | HEX SOC BOLT |
| 25 | 31YC-11631 | [2] | BUSH-PIN |
| 26 | Y010-065080 | [4] | SEAL-DUST |
| 32 | XKCC-00168 | [1] | CHECK VALVE |
| 33 | 31YC-99071 | [1] | SPRING-COIL |
| K34. | XKAY-00793 | [1] | O-RING |
| 35 | P220-110103 | [1] | PLUG-HEX |
| 27 | 31Y1-23130 | [1] | BAND ASSY |
| 27-1. | 31Y1-23140 | [1] | BAND SUB ASSY |
| 27-2. | 31YC-31050 | [1] | BAND |
| 27-3. | S071-022730 | [1] | U-BOLT |
| 27-4. | S011-100352 | [2] | BOLT-HEX |
| 27-5. | S201-101002 | [2] | NUT-HEX |
| 27-6. | XCAV-00030 | [4] | WASHER-SPRING |
| 28 | 31Y1-23170 | [1] | PIPE ASSY-RH |
| K29. | XCAV-00127 | [1] | O-RING |
| K30. | S621-018001 | [1] | O-RING |
| 31 | S107-100456 | [4] | BOLT-SOCKET |
| 31 | XKCC-00278 | [4] | HEX SOC BOLT |
| 32 | XKCC-00168 | [1] | CHECK VALVE |
| 33 | XKCC-00013 | [1] | SPRING-COIL |
| 34 | XKCC-00065 | [1] | O-RING |
| 35 | XKCC-00014 | [1] | PLUG-HEX |
| K. | 31Y1-23190 | [1] | SEAL KIT |
FAQ:
Q1. After we place our order, will you arrange shipment in time?
A: All products will be inspected before leaving the factory to ensure that there is no quality problem of the products will be promptly arranged for shipment.
Q2. How do I choose a raw compound for my appliCATEEion?
A: With years of experience in using a variety of materials, we can help you choose the material that best suits your needs, keeping in mind the cost of materials.
Q3.What's the price of your product?
A: Please try your best to make your inquiry including each details requirements, like quantity, size, color, logo printing, package....,in order to our sells could send you an accurate quote at first time.
Q4. Who will pay importing duties?
A: Our quotation does not includes importing cost such as duties. So our customer has to pay these fees according to importing policy of their country. If our customer has special requirement for the declared value, you can tell us.
Parts exploded view
Company warehouse
FAQ
1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.
2. Q: Can i make a small order first?
A: Yes, of course.
3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.
4. Q: Have you support the OEM or not?
A: Sure, we support the OEM,BULLDOG or as required.
5. Q: How can i pay the goods?
A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc
6. Q: How to ship the products?
A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.
7. Q: What’s the delivery time?
A: The goods can be shipped at 2-5 working days after receiving payment.
