Bulldog is the premiere provider of sealing solutions for heavy equipment worldwide,offering hydraulic cylinder kits,hydraulic pump seal kits, hydraulic breaker seal kits,hydraulic breaker diaphragms and walking motor seal kits, rock drill seal kits.
| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | BULLDOG,NICEPARTS |
| Model Number: | EC240C EW180B EW200B VOE14589134 Dipper Arm Seal Repair Kit EC Hydraulic Cylinder Service Kits |
| Minimum Order Quantity: | 1set |
| Price: | Consultation by letter |
| Packaging Details: | Carton packaging |
| Delivery Time: | 3-10 Days After Payment received |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal,Alipay |
| Supply Ability: | 100set |
| Type: | EC240C EW180B EW200B VOE14589134 Dipper Arm Seal Repair Kit EC Hydraulic Cylinder Service Kits | Material: | PU+NBR+PTFE |
|---|---|---|---|
| Color: | Black+Blue+yellow | For: | Hyundai Hydraulic System |
| Quality: | High-Quality | Rod: | 90mm |
| Piston: | 135mm | Condition: | 100%new |
| Stock: | In Stock | Model: | Hyundai Bulldozer |
| High Light: | EW200B Dipper Arm Seal Repair Kit,EC240C Arm Seal Repair Kit,VOE14589134 Arm Seal Repair Kit |
||

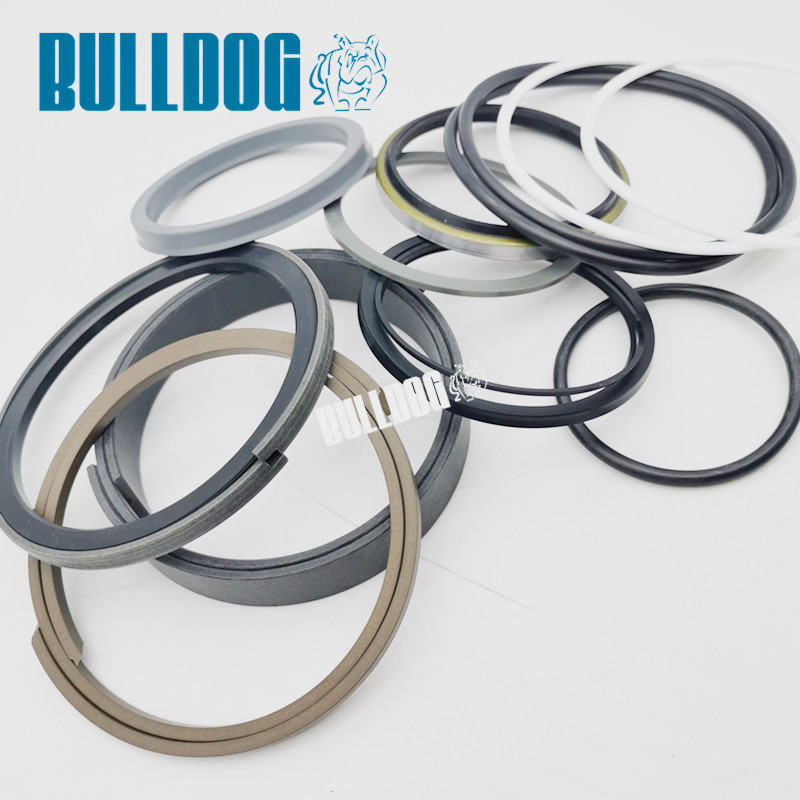

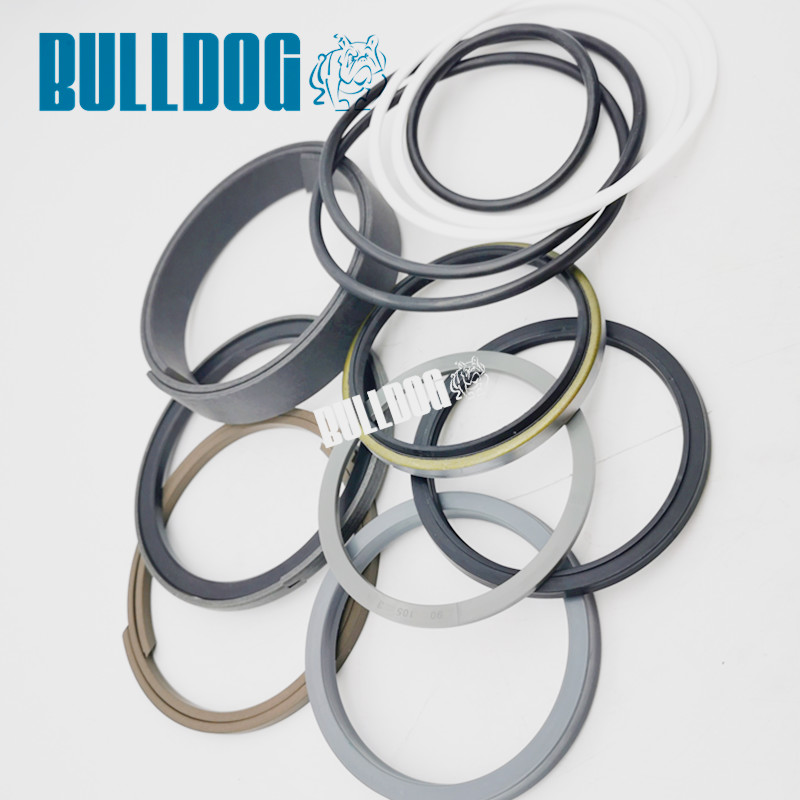

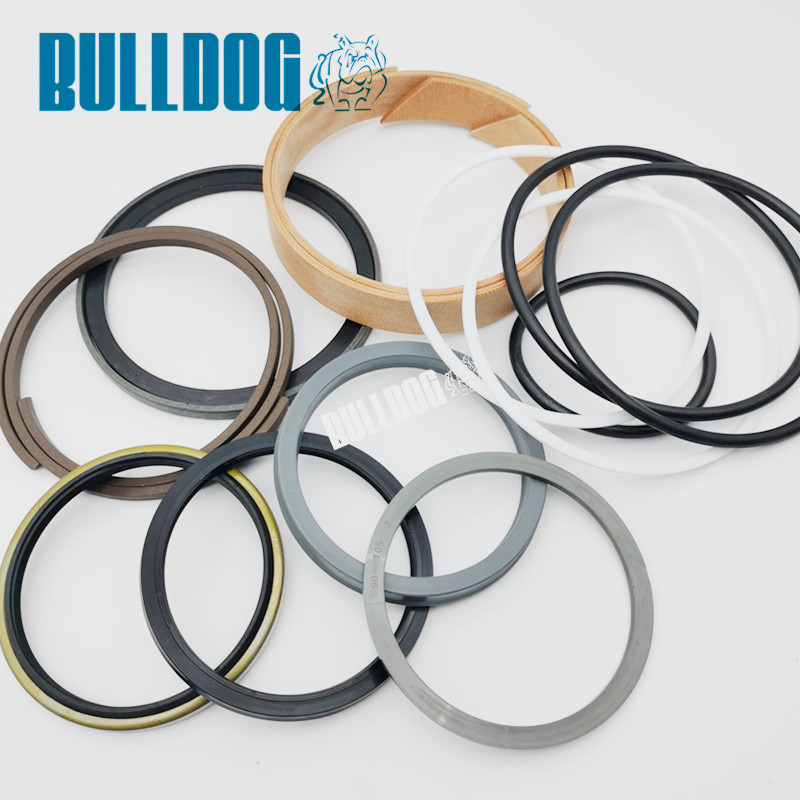

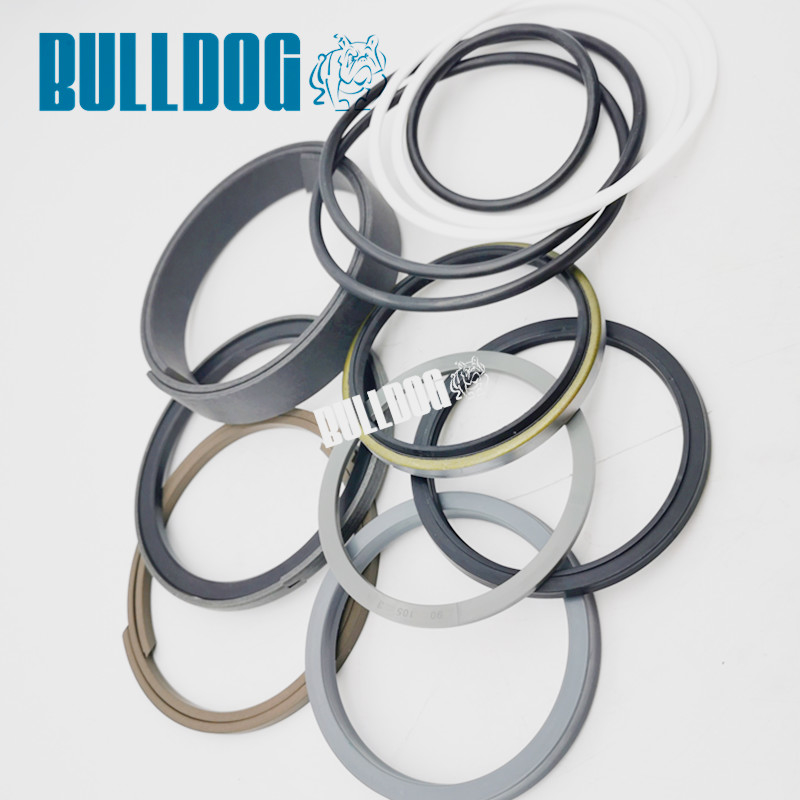

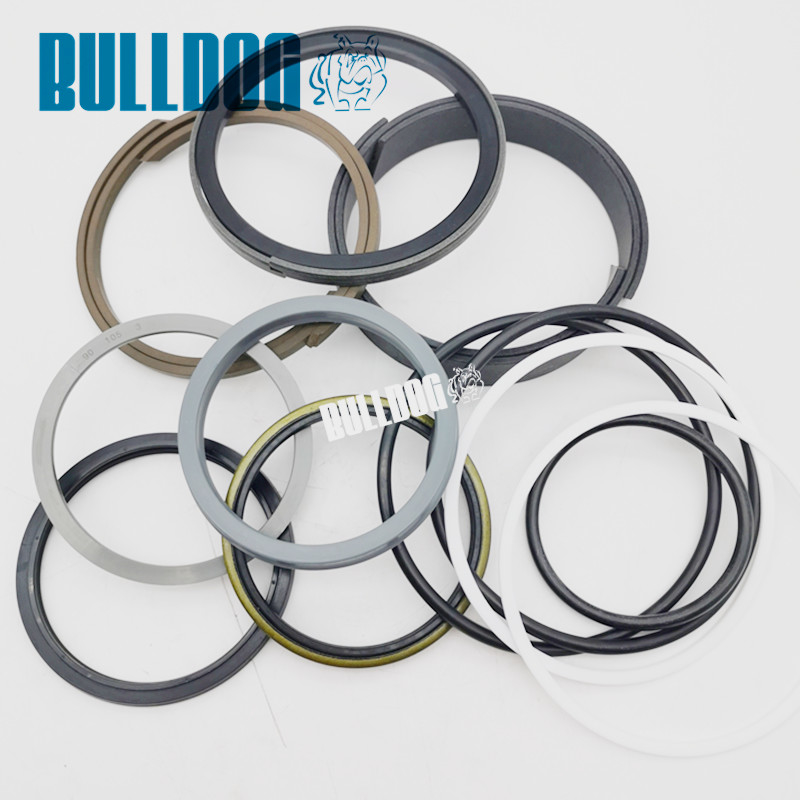

EC240C EW180B EW200B VOE14589134 Dipper Arm Seal Repair Kit EC Hydraulic Cylinder Service Kits
| Product Name | EC Dipper Arm Cylinder Service Kit 14589134 |
| Model Number | EC EC240B,EC240C, EW180B, EW180C, EW200B, FC2924C |
| Material | PTFE, HNBR, ACM, PU, Rubber, NBR, VMQ, |
| Feature | Corrosion resistance, abrasion resistant, low cost, etc. |
| Packing | PP bag inside, carton box outside |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| MOQ | Trial order acceptable |
| Shipping Mode | By air, by sea, by express (FedEx, UPS, DHL, TNT, etc.) |
| Part No. | 14589134 |
| Brand name | BULLDOG |
| CertifiCATEEion | ISO9001 |
| Market | Eastern Europe, Middle East, North America, etc. |
| Condition | 100% new, unopened |
| Pos. | Part No. | QTY | Parts Name |
| VOE14522770 | [1] | Cylinder | |
| 1 | VOE14623513 | [1] | Head |
| 2 | VOE14510823 | [1] | Piston |
| 3 | VOE14513468 | [1] | Rod |
| 4 | VOE14517941 | [2] | Bushing |
| 5 | VOE14560205 | [4] | Seal |
| 6 | VOE1146-08100 | [1] | Seal |
| 7 | SA9567-20900 | [1] | Back-up ring |
| 8 | SA9563-20900 | [1] | Seal |
| 9 | SA9564-20900 | [1] | Seal |
| 10 | SA9556-09000 | [1] | Retaining ring |
| 11 | SA9612-09040 | [1] | Bearing |
| 12 | SA9557-08000 | [1] | Retaining ring |
| 13 | VOE990648 | [2] | O-ring |
| 14 | SA9566-11250 | [1] | Back-up ring |
| 15 | SA9566-31250 | [1] | Back-up ring |
| 16 | VOE13949445 | [15] | Screw |
| 17 | SA9565-11350 | [2] | Wear ring |
| 18 | VOE14510827 | [1] | Seal |
| 19 | SA9568-01350 | [2] | Seal |
| 20 | SA1146-00820 | [1] | Rubber damper |
| 21 | VOE990637 | [1] | O-ring |
| 22 | SA1146-06900 | [1] | Lock nut |
| 23 | SA9216-07010 | [1] | Lock washer |
| 24 | SA1146-02880 | [1] | Pin |
| 25 | SA1146-06870 | [1] | Pad |
| 26 | VOE13963059 | [1] | Set screw |
| VOE14589134 | [1] | Sealing kit |
Main Products:
| Main Products |
| Engine parts: Engine parts: Cylinder block, Cylinder head, Crankshaft, Camshaft, Connecting rod, Engine assy, Injector, Fuel injection pump, Oil pump, Feed pump, Oil cooler, Filter, Turbo charger, Starter, Alternator, Water pump, Fan blade, Liner kits, Bearings, Valves, Gasket kit, etc. |
| Hydraulic parts: Hydraulic pump, Hydraulic spare parts, Travel motor, Swing motor, Travel gearbox, Swing gearbox, Main control valve, Hydraulic cylinder assy, Gear pump, Hydraulic motor, Swivel/Center Joint, Conversion kit, etc. |
| Cabin parts: Excavator cabin, Cabin door, Side door panel, Cabin seat, Cabin glass, Engine cover, Tool box, Door lock, etc. |
| Electric Parts: Controller, Monitor, Panel, Throttle motor, Solenoid valve, Sensor, Switch, Stop solenoid, Thermostat, Harness, etc. |
| Other Parts: Seal kit, Floating seal, O-ring box, Engine cushion, Gear, Radiator, Hydraulic oil cooler, etc |
Parts exploded view
Company warehouse
FAQ
1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.
2. Q: Can i make a small order first?
A: Yes, of course.
3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.
4. Q: Have you support the OEM or not?
A: Sure, we support the OEM,BULLDOG or as required.
5. Q: How can i pay the goods?
A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc
6. Q: How to ship the products?
A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.
7. Q: What’s the delivery time?
A: The goods can be shipped at 2-5 working days after receiving payment.
| EC EC240B, EC240C, EW180B, EW180C, EW200B, FC2924C |
