Bulldog is the premiere provider of sealing solutions for heavy equipment worldwide,offering hydraulic cylinder kits,hydraulic pump seal kits, hydraulic breaker seal kits,hydraulic breaker diaphragms and walking motor seal kits, rock drill seal kits.
| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | BULLDOG,NICEPARTS |
| Model Number: | Boom Seal Repair Kit 31Y1-33870 31Y133870 Cylinder Oil Seal Kits Fits For Hyundai R360LC-9 R430LC-9 |
| Minimum Order Quantity: | 1set |
| Price: | Consultation by letter |
| Packaging Details: | Carton packaging |
| Delivery Time: | 3-10 Days After Payment received |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal,Alipay |
| Supply Ability: | 100set |
| Type: | Boom Seal Repair Kit 31Y1-33870 31Y133870 Cylinder Oil Seal Kits Fits For Hyundai R360LC-9 R430LC-9 | Material: | PU+NBR+PTFE |
|---|---|---|---|
| Color: | Black+Blue+yellow | For: | Hyundai Hydraulic System |
| Quality: | High-Quality | Rod: | 110mm |
| Piston: | 160mm | Condition: | 100%new |
| Stock: | In Stock | Model: | Hyundai Bulldozer |

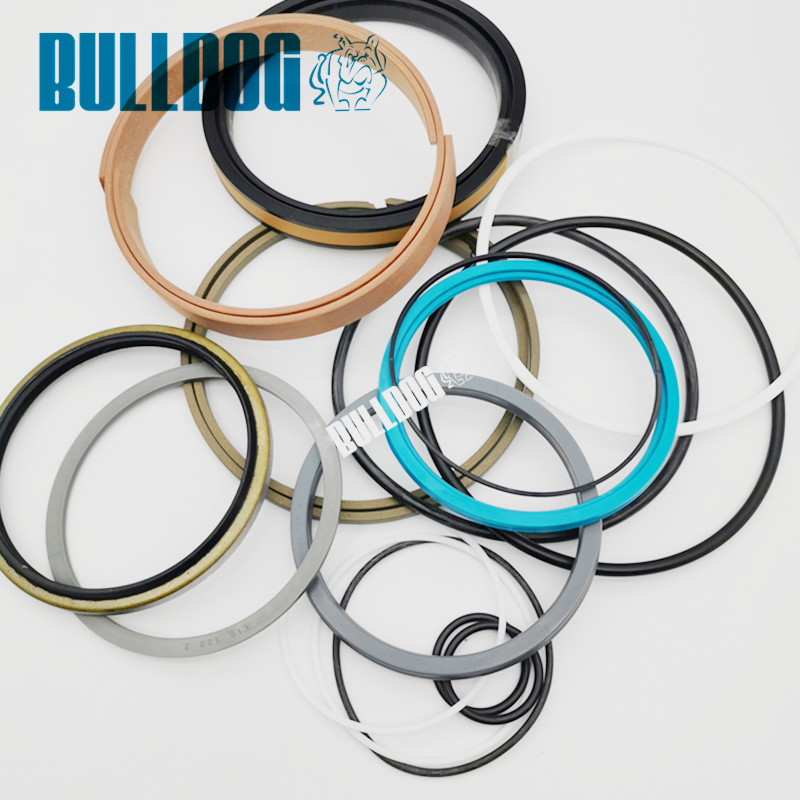

Boom Seal Repair Kit 31Y1-33870 31Y133870 Cylinder Oil Seal Kits Fits For Hyundai R360LC-9 R430LC-9
| Product name | 31Y1-33870 Cylinder Seal Kit |
| Model Number | Various model |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Packing | PP bag inside, carton box outside |
| Payment Terms | Western Union, L/C, T/T, MoneyGram, D/A, D/P |
| MOQ | Acceptable trial order |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part No. | 31Y1-33870 31Y133870 |
| Place of Origin | Guangdong, China |
| Type | Cylinder seal kit |
| Brand name | BULLDOG |
| CertifiCATEEion | ISO9001 |
| AppliCATEEion | Hyundai excavator boom seal kit |
Our Product CATEEegories:
Hydraulic seals · Rotary Seal · Piston Seals · Rod Seals · Rod Buffer Seals · Wiper Seals · Wear Rings · Hyundai seal kit · Komatsu seal kit · EC seal kit · Hitachi seal kit · Doosan/Daewoo seal kit · Kato seal kit · Kobelco seal kit · Oil seal · O-ring · Center joint seal kit · Transmission Seal Kit · breaker hammer seal kit · Excavator seal kit...
Parts exploded view
| Pos. | Part No | Qty | Parts name |
| *. | 31QA-50110 | [1] | BOOM CYLINDER ASSY-LH |
| *. | 31QA-50111 | [1] | BOOM CYLINDER ASSY-LH |
| *. | 31QA-50120 | [1] | BOOM CYLINDER ASSY-RH |
| *. | 31QA-50121 | [1] | BOOM CYLINDER ASSY-RH |
| *-1. | 31Y1-33730 | [1] | BOOM CYL SUB ASSY |
| 1 | 31Y1-33740 | [1] | TUBE ASSY |
| 2 | 31Y1-33780 | [1] | ROD ASSY |
| 3 | 31Y1-33820 | [1] | GLAND |
| 4 | S732-110045 | [1] | BUSHING-DD2 |
| 5 | Y191-117000 | [1] | RING-SNAP |
| K6. | Y220-110013 | [1] | SEAL-ROD |
| K7. | Y180-110020 | [1] | RING-BACK UP |
| K8. | Y240-110012 | [1] | RING-BUFFER |
| K9. | Y110-110011 | [1] | WIPER-DUST |
| 10 | Y190-126000 | [1] | RING-SNAP |
| K11. | S631-150004 | [1] | O-RING |
| K12. | 31YC-BP150 | [1] | RING-BACK UP |
| 13 | 31YC-26105 | [1] | RING-CUSHION |
| 14 | 31Y1-33090 | [1] | PISTON |
| K15. | Y420-160000 | [1] | SEAL-PISTON |
| K16. | Y310-160203 | [2] | RING-WEAR |
| K17. | Y440-160102 | [2] | RING-DUST |
| K18. | S632-085004 | [1] | O-RING |
| K19. | 31YC-CG085 | [2] | RING-BACK UP |
| 20 | 31YC-68060 | [1] | NUT-LOCK |
| 21 | S114-100164 | [1] | SCREW-SET |
| K22. | 31YC-99H80 | [1] | O-RING |
| 23 | S109-220904 | [12] | BOLT-SOCKET |
| 24 | 61Q6-97810 | [1] | BUSHING-PIN |
| 24 | 61QH-73620 | [1] | BUSHING-PIN |
| 25 | 61Q6-97610 | [1] | BUSHING-PIN |
| 25 | 61QH-96420 | [1] | BUSHING-PIN |
| 26 | Y020-110000 | [2] | SEAL-DUST,DLI,KPU |
| 27 | Y000-100100 | [2] | SEAL-DUST,DLI,KPU |
| 27 | Y020-100100 | [2] | SEAL-DUST,DLI,KPU |
| 28 | 31Y1-33830 | [1] | BAND ASSY |
| 28-1. | 31Y1-33840 | [1] | BAND SUB ASSY |
| 28-2. | 31YC-32340 | [1] | BAND |
| 28-3. | S015-120452 | [4] | BOLT-HEX |
| 28-4. | S411-120002 | [4] | WASHER-SPRING |
| 28-5. | 31YC-39031 | [1] | CLAMP-PIPE |
| 28-6. | S015-140602 | [1] | BOLT-HEX |
| 28-7. | S411-140002 | [1] | WASHER-SPRING |
| 29 | 31Y1-33850 | [1] | PIPE ASSY-R,LH |
| 29 | 31Y1-33851 | [1] | PIPE ASSY-R,LH |
| 29 | 31Y1-33860 | [1] | PIPE ASSY-R,RH |
| 30 | 31Y1-36061 | [1] | PIPE ASSY-B,LH |
| 30 | 31Y1-36060 | [1] | PIPE ASSY-B,LH |
| 30 | 31Y1-36071 | [1] | PIPE ASSY-B,RH |
| K31. | Y171-024004 | [2] | O-RING |
| 32 | S107-120604 | [8] | BOLT-SOCKET |
| 33 | 31Y1-38040 | [1] | BAND ASSY-LH |
| 33 | 31Y1-38050 | [1] | BAND ASSY-RH |
| 33-1. | 31Y1-33840 | [1] | BAND SUB ASSY |
| 33-1. | 31Y1-33840 | [1] | BAND SUB ASSY |
| 33-2. | 31YC-32340 | [1] | BAND |
| 33-3. | S015-120452 | [4] | BOLT-HEX |
| 33-4. | S411-120002 | [4] | WASHER-SPRING |
| 33-5. | S070-053442 | [1] | U-BOLT |
| 33-6. | S205-101002 | [1] | NUT-HEX |
| 33-7. | S411-100002 | [1] | WASHER-SPRING |
| K. | 31Y1-33870 | [1] | SEAL KIT |
