Bulldog is the premiere provider of sealing solutions for heavy equipment worldwide,offering hydraulic cylinder kits,hydraulic pump seal kits, hydraulic breaker seal kits,hydraulic breaker diaphragms and walking motor seal kits, rock drill seal kits.
| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | BULLDOG,NICEPARTS |
| Model Number: | 31Y1-30290 Hydraulic Cylinder Repair Kits BUCKET SEAL KIT R290LC-9 Excavator |
| Minimum Order Quantity: | 1set |
| Price: | Consultation by letter |
| Packaging Details: | Carton packaging |
| Delivery Time: | 3-10 Days After Payment received |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal,Alipay |
| Supply Ability: | 100set |
| Type: | 31Y1-30290 Hydraulic Cylinder Repair Kits BUCKET SEAL KIT R290LC-9 Excavator | Material: | PU+NBR+PTFE |
|---|---|---|---|
| Color: | Black+Blue+yellow | For: | HYUNDAI Hydraulic System |
| Quality: | High-Quality | Rod: | 95mm |
| Piston: | 135mm | Condition: | 100%new |
| Stock: | In Stock | Model: | HYUNDAI Bulldozer |

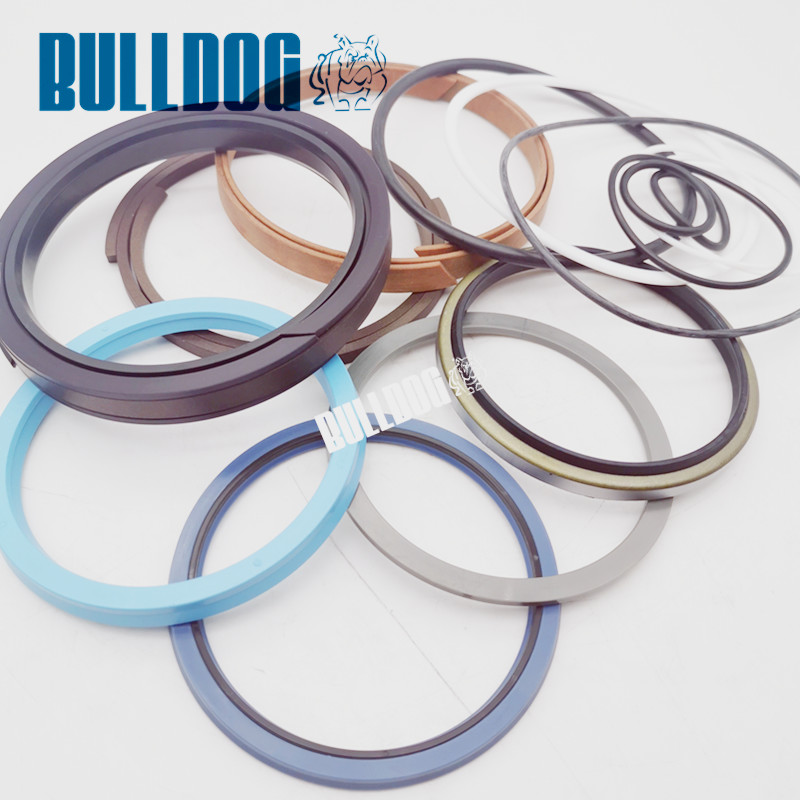

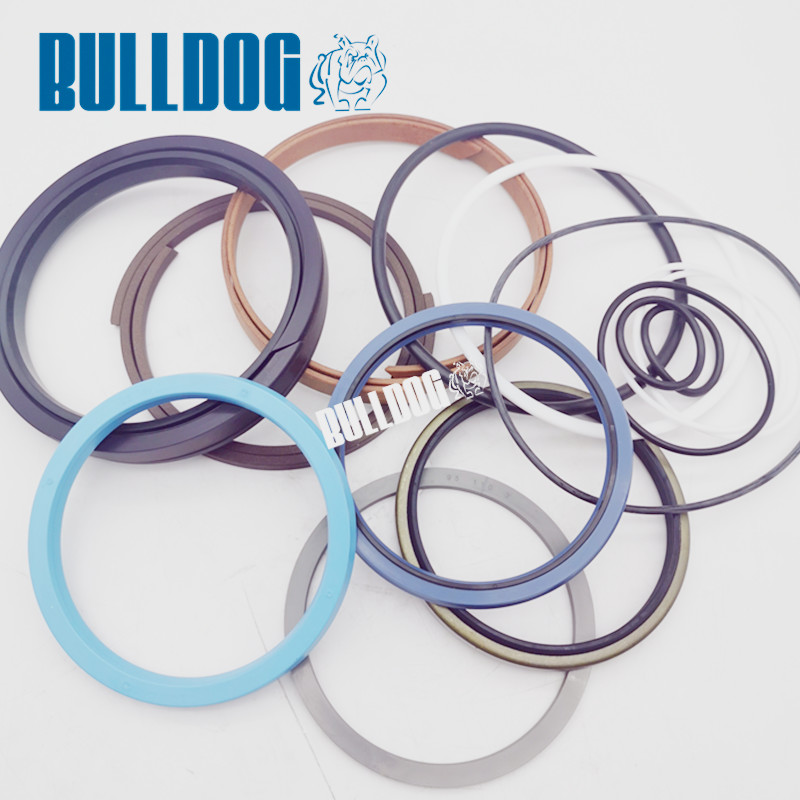

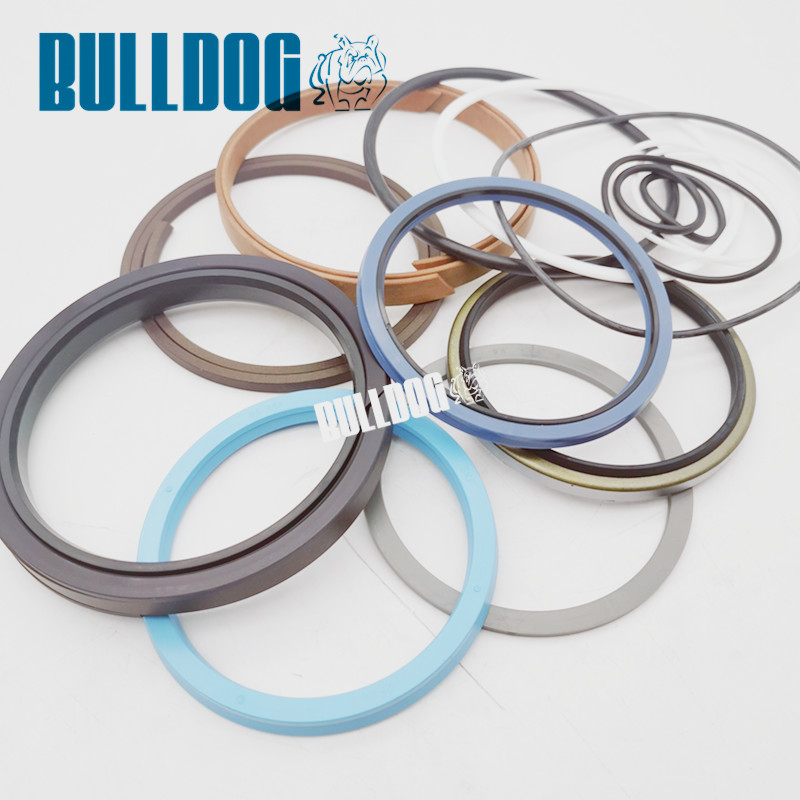

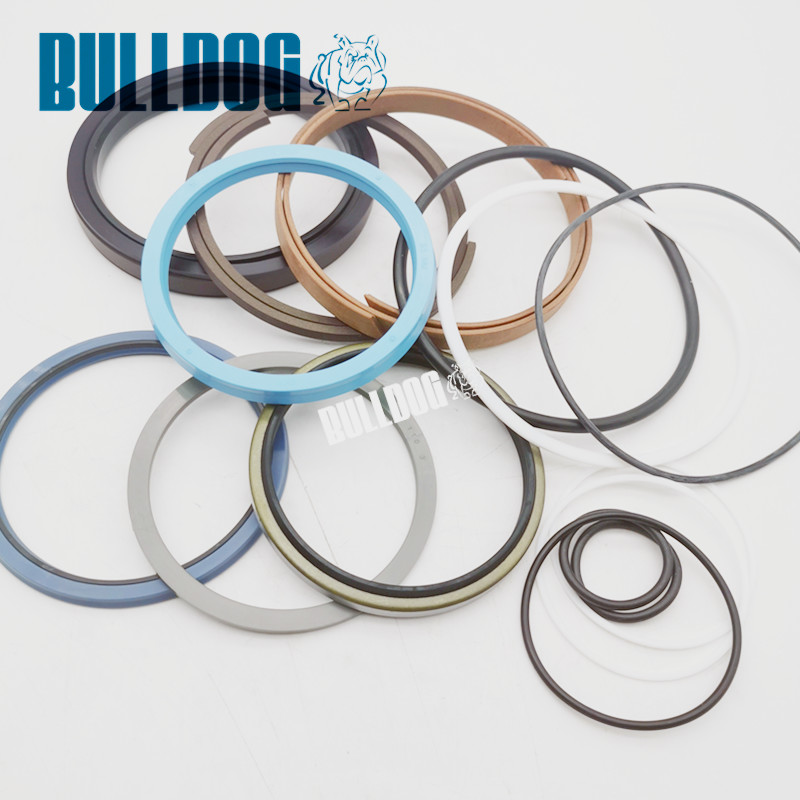

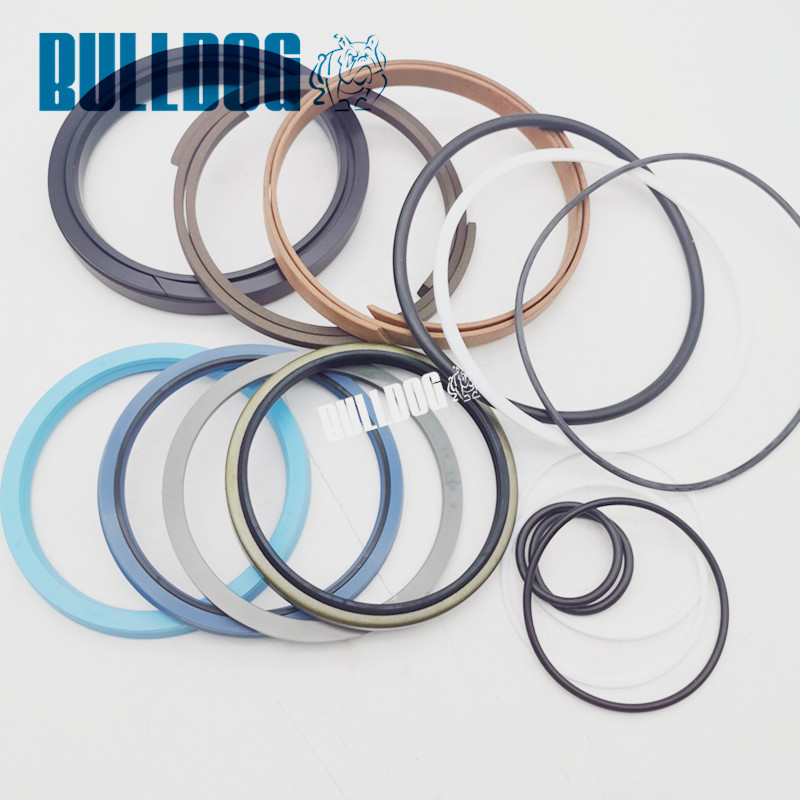

31Y1-30290 Hydraulic Cylinder Repair Kits BUCKET SEAL KIT R290LC-9 Excavator
| Product Name | Cylinder Seal Kit |
| Model Number | Hyundai R290LC-9 |
| Place of Origin | China(Mainland) |
| Brand name | BULLDOG |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 31Y1-30290 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size |
| Applicable Industries | Machinery repair shops, construction works, energy & mining |
| CertifiCATEEion | ISO9001 |
| Condition | 100% New |
| CATEEegory | Hydraulic cylinder seal kit |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Feature | Long service life, high chemical resistance, durable |
| Preservation Notice | Closed, dry and avoid the sun |
| Related Brands | Komatsu, Hitachi, Sumitomo, Doosan, Daewoo, Hyundai, CATEE, EC, Kato... |
Parts list
| Part No. | Parts name | Part No. | Parts name |
| 31N6-50137 | ARM CYLINDER ASSY | Y440-140000 | RING-DUST |
| 31N6-50138 | ARM CYLINDER ASSY | S632-075004 | O-RING |
| 31N6-50139 | ARM CYLINDER ASSY | S642-075003 | RING-BACK UP |
| 31N6-53215 | ARM CYLINDER ASSY | 31YC-64060 | NUT-LOCK |
| 31N6-53216 | ARM CYLINDER ASSY | 31YC-68050 | NUT-LOCK |
| 31Y1-15065 | ARM CYL SUB ASSY | S114-100164 | SCREW-SET |
| 31Y1-15067 | ARM CYL SUB ASSY | S109-180904 | BOLT-SOCKET |
| 31Y1-44620 | ARM CYL SUB ASSY | S109-180854 | BOLT-SOCKET |
| 31Y1-15075 | TUBE ASSY | 31Y1-15175 | BAND ASSY-R |
| 31Y1-15076 | TUBE ASSY | 31Y1-29170 | BAND ASSY-R |
| 31Y1-15077 | TUBE ASSY | 31Y1-15185 | BAND SUB ASSY |
| 31YC-11141 | BUSHING-PIN | 31YC-18635 | BAND SUB ASSY |
| Y000-080200 | SEAL-DUST | S015-120452 | BOLT-HEX |
| 31YC-2A070 | VALVE-CHECK | S411-120002 | WASHER-SPRING |
| 31YC-99071 | SPRING-COIL | S071-023430 | U-BOLT |
| S631-014004 | O-RING | S201-101002 | NUT-HEX |
| P220-110103 | PLUG-HEX | S411-100002 | WASHER-SPRINIG |
| 31Y1-15125 | ROD ASSY | 31Y1-15196 | BAND ASSY-B |
| 31Y1-15126 | ROD ASSY | 31Y1-29200 | BAND ASSY-B |
| @ | SPEAR-CUSHION | 31Y1-15205 | BAND SUB ASSY |
| @ | RING-STOP | 31Y1-18645 | BAND SUB ASSY |
| 31Y1-21955 | GLAND | S015-120452 | BOLT-HEX |
| 31Y1-21956 | GLAND | S411-120002 | WASHER-SPRING |
| 31Y1-28741 | GLAND | S071-023430 | U-BOLT |
| S732-100040 | BUSHING-DD2 | S201-101002 | NUT-HEX |
| Y191-107000 | RING-SNAP | S411-100002 | WASHER-SPRINIG |
| Y220-100011 | SEAL-ROD,IUH | 31Y1-20675 | BAND ASSY-B |
| Y220-100013 | SEAL-ROD | 31Y1-20685 | BAND SUB ASSY |
| Y180-100020 | RING-BACK UP | 31YC-32090 | BAND |
| Y240-100013 | RING-BUFFER | S015-120452 | BOLT-HEX |
| Y240-100012 | RING-BUFFER | S411-120002 | WASHER-SPRING |
| Y110-100011 | WIPER-DUST | S071-023430 | U-BOLT |
| Y190-114000 | RING-SNAP | S201-101002 | NUT-HEX |
| S631-130004 | O-RING | S411-100002 | WASHER-SPRINIG |
| 31YC-BP130 | RING-BACK UP | 31Y1-15216 | PIPE ASSY-R |
| 31YC-CP130 | RING-BACK UP | 31Y1-15217 | PIPE ASSY-R |
| 31YC-26010 | RING-CUSHION | 31Y1-21345 | PIPE ASSY-R |
| 31YC-26011 | RING-CUSHION | 31Y1-20695 | PIPE ASSY-B |
| 31YC-28030 | RING-CUSHION | Y171-024004 | O-RING |
| 31Y1-15165 | PISTON | S107-120554 | BOLT-SOCKET |
| 31Y1-15166 | PISTON | S632-140004 | O-RING |
| 31Y1-28771 | PISTON | 31Y1-30290 | SEAL KIT |
| Y420-140000 | SEAL-PISTON | 31Y1-15237 | SEAL KIT |
| Y420-140002 | SEAL-PISTON | 31Y1-15235 | SEAL KIT |
| Y310-140000 | RING-WEAR | 31Y1-35212 | SEAL KIT |
| Y310-140103 | RING-WEAR |
Parts exploded view
Company warehouse
FAQ
1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.
2. Q: Can i make a small order first?
A: Yes, of course.
3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.
4. Q: Have you support the OEM or not?
A: Sure, we support the OEM,BULLDOG or as required.
5. Q: How can i pay the goods?
A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc
6. Q: How to ship the products?
A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.
7. Q: What’s the delivery time?
A: The goods can be shipped at 2-5 working days after receiving payment.
