Bulldog is the premiere provider of sealing solutions for heavy equipment worldwide,offering hydraulic cylinder kits,hydraulic pump seal kits, hydraulic breaker seal kits,hydraulic breaker diaphragms and walking motor seal kits, rock drill seal kits.
| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | BULLDOG,NICEPARTS |
| Model Number: | Boom Cylinder Service Kit 31Y1-29100 Hyundai R210W-9 R210NLC-9 Excavator Replacement Kits |
| Minimum Order Quantity: | 1set |
| Price: | Consultation by letter |
| Packaging Details: | Carton packaging |
| Delivery Time: | 3-10 Days After Payment received |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal,Alipay |
| Supply Ability: | 100set |
| Type: | Boom Cylinder Service Kit 31Y1-29100 Hyundai R210W-9 R210NLC-9 Excavator Replacement Kits | Material: | PU+NBR+PTFE |
|---|---|---|---|
| Color: | Black+Blue+yellow | For: | Hyundai Hydraulic System |
| Quality: | High-Quality | Rod: | 85mm |
| Piston: | 120mm | Condition: | 100%new |
| Stock: | In Stock | Model: | Hyundai Bulldozer |

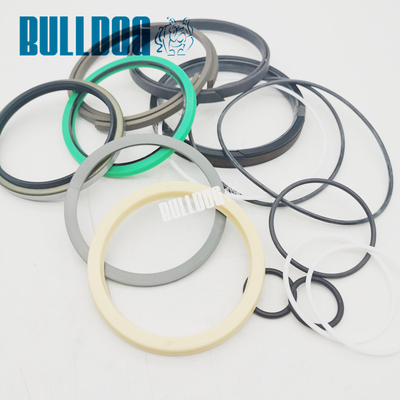

Boom Cylinder Service Kit 31Y1-29100 Hyundai R210W-9 R210NLC-9 Excavator Replacement Kits
| Product Name | Boom Cylinder Service Kit |
| Part Number | 31Y1-29100 |
| Model |
HYUNDAI 9-Series Crawler Excavator R210LC-9, R210LC-9BC, R210LC-9BH, R210NLC-9, R220LC-9S(BRAZIL), R220LC-9S, R220LC-9SH, R220LC-9A, R220NLC-9A, R235LCR-9, R235LCR-9A, RB220LC-9S; 9-Series Wheel Excavator R210W-9, R210W-9A, R210W9AMH, R210W9-MH, R210W-9S; F-Series Crawler Excavator HX220L, HX220NL, HX235L; F-Series Wheel Excavator HW210 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | BULLDOG |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiCATEEion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| CATEEegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliCATEEion | Boom |
| Rod | 85 MM |
| Bore | 120 MM |
Parts list
| Pos. | Part No | Product Name | Qty |
| *. | 31Q6-53110 | BOOM CYLINDER ASSY-LH | [1] |
| *. | 31Q6-53410 | BOOM CYLINDER ASSY-LH | [1] |
| *. | 31Q6-53120 | BOOM CYLINDER ASSY-RH | [1] |
| *. | 31Q6-53420 | BOOM CYLINDER ASSY-RH | [1] |
| *-1. | 31Y1-36320 | BOOM CYL SUB ASSY | [1] |
| *-1. | 31Y1-39880 | BOOM CYL SUB ASSY | [1] |
| K1. | 31Y1-36190 | TUBE ASSY | [1] |
| K1. | 31Y1-39790 | TUBE ASSY | [1] |
| K2. | 31Y1-28870 | ROD ASSY | [1] |
| K2. | 31Y1-39830 | ROD ASSY | [1] |
| K3. | 31Y1-36230 | GLAND | [1] |
| K4. | S732-085030 | BUSHING-DD2 | [1] |
| K5. | Y191-092000 | RING-SNAP | [1] |
| K6. | Y220-085013 | SEAL-ROD | [1] |
| K7. | Y180-085020 | RING-BACK UP | [1] |
| K8. | Y240-085012 | RING-BUFFER | [1] |
| K9. | Y110-085011 | WIPER-DUST | [1] |
| K10. | Y190-099000 | RING-SNAP | [1] |
| K11. | S632-115004 | O-RING | [1] |
| K12. | S642-115003 | RING-BACK UP | [1] |
| K13. | 31YC-26060 | RING-CUSHION | [1] |
| K14. | 31Y1-28940 | PISTON | [1] |
| K15. | Y420-120000 | SEAL-PISTON | [1] |
| K15. | Y420-120002 | SEAL-PISTON | [1] |
| K16. | Y310-120203 | RING-WEAR | [2] |
| K17. | Y440-120002 | RING-DUST | [2] |
| K17. | Y440-120000 | RING-DUST | [2] |
| K18. | S632-060004 | O-RING | [1] |
| K19. | S642-060003 | RING-BACK UP | [2] |
| K20. | 31YC-68030 | NUT-LOCK | [1] |
| K21. | S114-080144 | SCREW-SET | [1] |
| K22. | S632-120004 | O-RING | [1] |
| K23. | S109-160754 | BOLT-SOCKET | [12] |
| K24. | 61Q6-97210 | BUSHING-PIN | [1] |
| K24. | 61Q6-97211 | BUSHING-PIN | [1] |
| K24. | 61QH-73010 | BUSHING-PIN | [1] |
| K25. | 61Q6-97220 | BUSHING-PIN | [1] |
| K25. | 61Q6-97221 | BUSHING-PIN | [1] |
| K25. | 61QH-73020 | BUSHING-PIN | [1] |
| K26. | Y020-080000 | SEAL-DUST,DLI,KPU | [4] |
| K27. | 31Y1-36240 | BAND ASSY | [1] |
| 27-1. | 31Y1-29240 | BAND SUB ASSY | [1] |
| 27-2. | 31YC-31480 | BAND | [1] |
| 27-3. | S070-052738 | U-BOLT | [2] |
| 27-4. | S011-100352 | BOLT-HEX | [2] |
| 27-5. | S205-101002 | NUT-HEX | [4] |
| 27-6. | S411-100002 | WASHER-SPRING | [6] |
| K28. | 31Y1-36260 | PIPE ASSY-R,LH | [1] |
| K28. | 31Y1-43280 | PIPE ASSY-R,LH | [1] |
| K28. | 31Y1-36270 | PIPE ASSY-R,RH | [1] |
| K28. | 31Y1-43290 | PIPE ASSY-R,RH | [1] |
| K29. | 31Y1-36280 | PIPE ASSY-B,LH | [1] |
| K29. | 31Y1-36290 | PIPE ASSY-B,RH | [1] |
| K30. | Y171-019004 | O-RING | [2] |
| K31. | S107-100454 | BOLT-SOCKET | [8] |
| K. | 31Y1-29100 | SEAL KIT | [1] |
Parts exploded view
Company warehouse
FAQ
1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.
2. Q: Can i make a small order first?
A: Yes, of course.
3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.
4. Q: Have you support the OEM or not?
A: Sure, we support the OEM,BULLDOG or as required.
5. Q: How can i pay the goods?
A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc
6. Q: How to ship the products?
A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.
7. Q: What’s the delivery time?
A: The goods can be shipped at 2-5 working days after receiving payment.
