Bulldog is the premiere provider of sealing solutions for heavy equipment worldwide,offering hydraulic cylinder kits,hydraulic pump seal kits, hydraulic breaker seal kits,hydraulic breaker diaphragms and walking motor seal kits, rock drill seal kits.
| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | BULLDOG,NICEPARTS |
| Model Number: | Hyundai R200W-7 31Y1-15230 Arm Cylinder Repair Seal Kit Excavator Service Kit |
| Minimum Order Quantity: | 1set |
| Price: | Consultation by letter |
| Packaging Details: | Carton packaging |
| Delivery Time: | 3-10 Days After Payment received |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal,Alipay |
| Supply Ability: | 100set |
| Type: | Hyundai R200W-7 31Y1-15230 Arm Cylinder Repair Seal Kit Excavator Service Kit | Material: | PU+NBR+PTFE |
|---|---|---|---|
| Color: | Black+Blue+yellow | For: | Hyundai Hydraulic System |
| Quality: | High-Quality | Rod: | 100mm |
| Piston: | 140mm | Condition: | 100%new |
| Stock: | In Stock | Model: | Hyundai Bulldozer |
| High Light: | 31Y1-15230 Excavator Service Kit,Arm Hydraulic Cylinder Repair Seal Kit,R200W-7 Hydraulic Cylinder Repair Seal Kit |
||

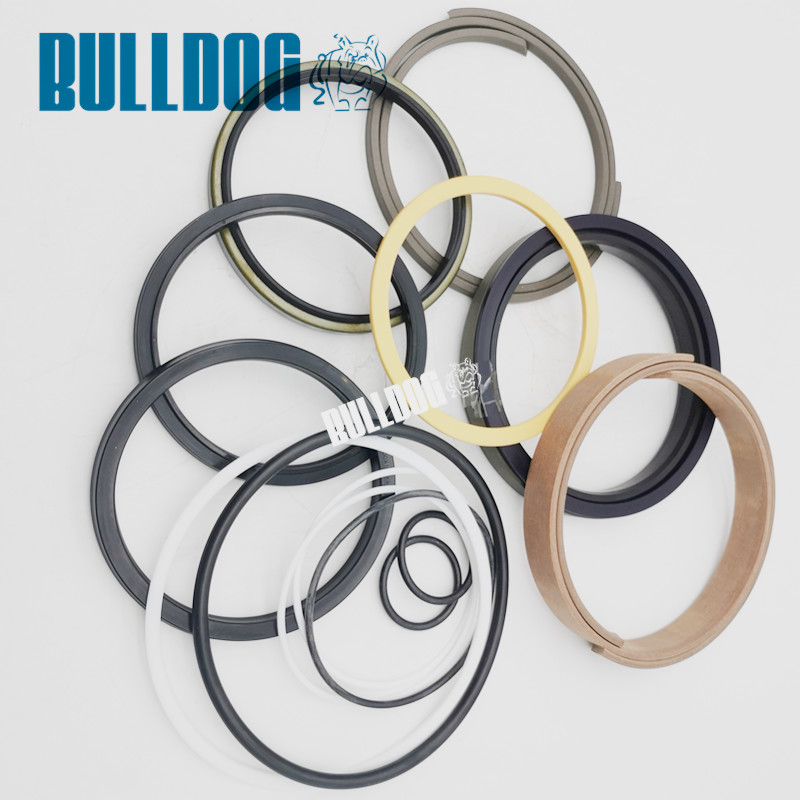

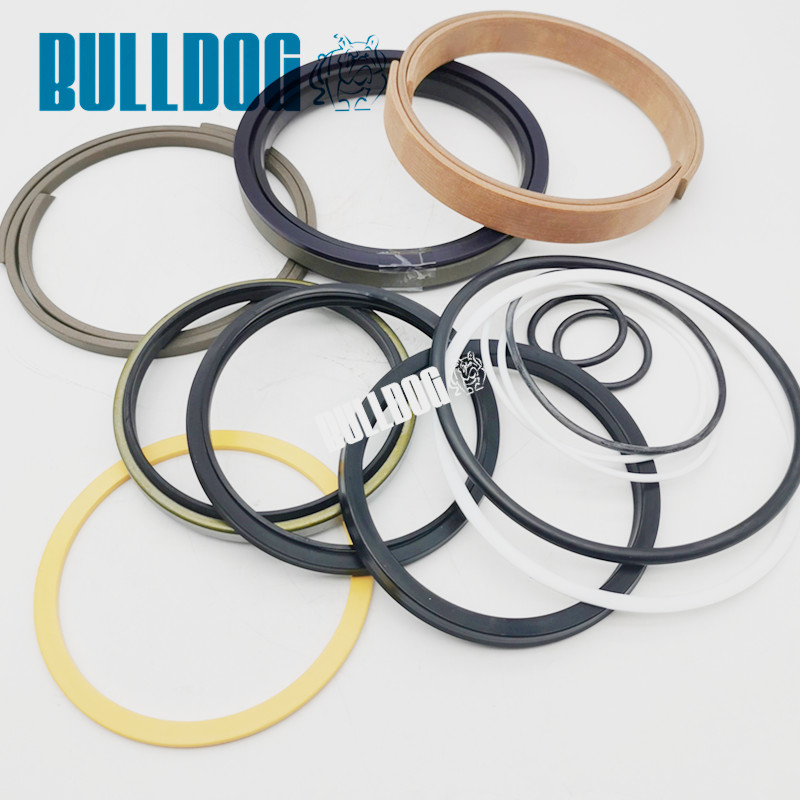

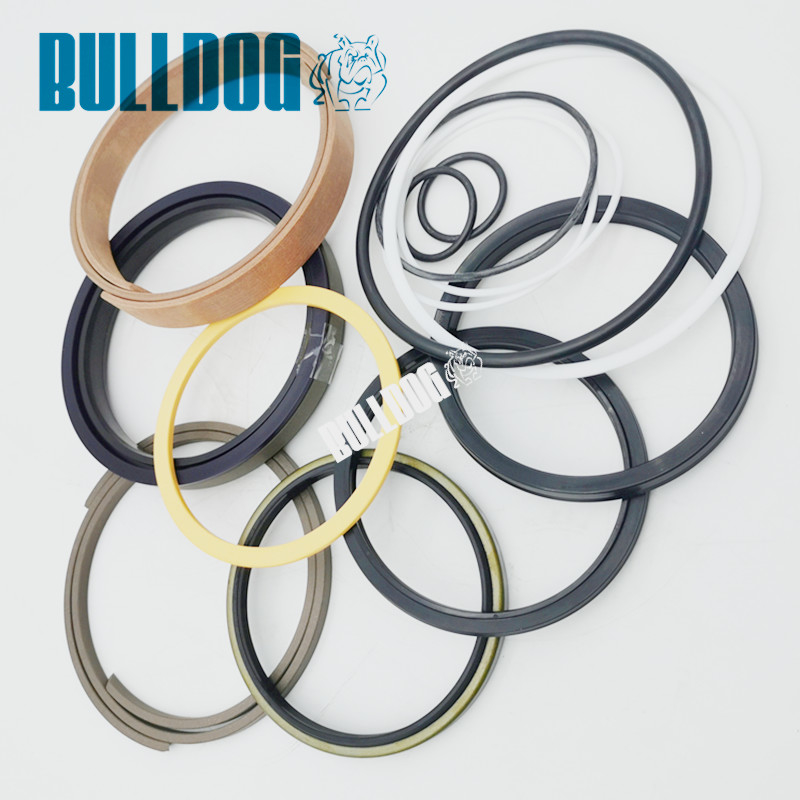

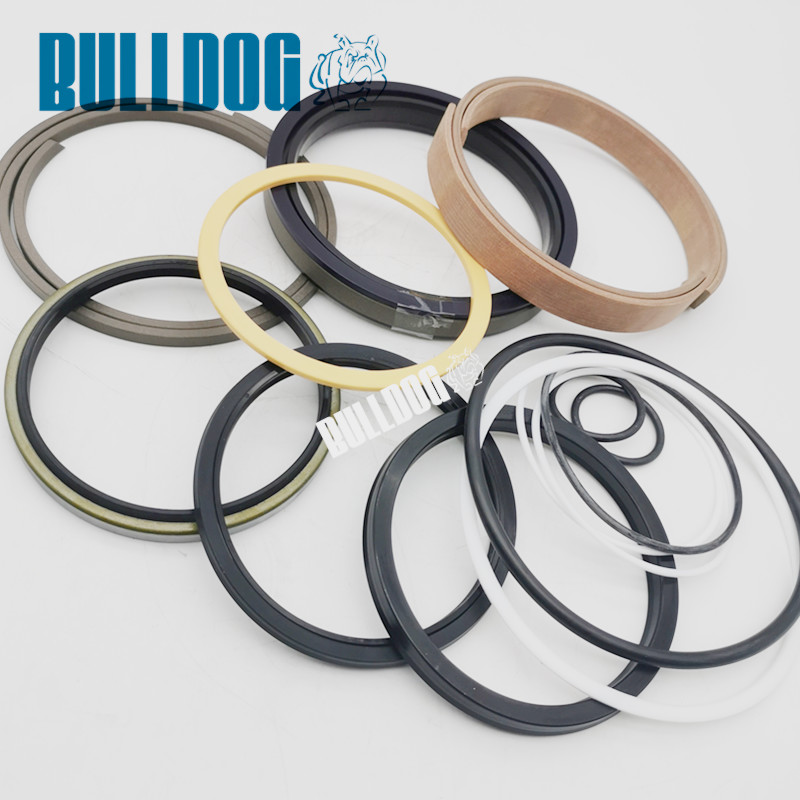

Hyundai R200W-7 31Y1-15230 Arm Cylinder Repair Seal Kit Excavator Service Kit
| Product Name | Cylinder Seal Kit |
| Model Number | Hyundai R200W-7, R210LC-7, R210LC-7H, R210NLC-7 |
| Place of Origin | China(Mainland) |
| Brand name | BULLDOG |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 31Y1-15230 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size |
| Applicable Industries | Machinery repair shops, construction works, energy & mining |
| CertifiCATEEion | ISO9001 |
| Condition | 100% New |
| CATEEegory | Hydraulic cylinder seal kit |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Feature | Long service life, high chemical resistance, durable |
| Preservation Notice | Closed, dry and avoid the sun |
| Related Brands | Komatsu, Hitachi, Sumitomo, Doosan, Daewoo, Hyundai, CATEE, EC, Kato... |
Parts list
| Pos. | Part No | Qty | Parts name |
| *. | 31N6-50130 | [1] | ARM CYLINDER ASSY |
| *. | 31N6-53210 | [1] | ARM CYLINDER ASSY |
| *-1. | 31Y1-15060 | [1] | ARM CYL SUB ASSY |
| 1 | 31Y1-15070 | [1] | TUBE ASSY |
| 1-4. | 31YC-11141 | [2] | BUSHING-PIN |
| 1-5. | Y000-080200 | [4] | SEAL-DUST |
| 2 | 31Y1-15120 | [1] | ROD ASSY |
| N20. | @ | [1] | SPEAR-CUSHION |
| N21. | @ | [1] | VALVE-CHECK |
| N22. | @ | [1] | SPRING-COIL |
| N23. | @ | [1] | RING-STOP |
| K3. | 31Y1-21950 | [1] | GLAND |
| K4. | S732-100040 | [1] | BUSHING-DD2 |
| K5. | Y191-107000 | [1] | RING-SNAP |
| K6. | Y220-100011 | [1] | SEAL-ROD |
| K7. | Y180-100020 | [1] | RING-BACK UP |
| K8. | Y240-100013 | [1] | RING-BUFFER |
| K9. | Y110-100011 | [1] | WIPER-DUST |
| K10 | Y190-114000 | [1] | RING-SNAP |
| K11. | S631-130004 | [1] | O-RING |
| K12. | S641-130003 | [1] | RING-BACK UP |
| K13. | 31YC-23040 | [1] | RING-CUSHION |
| K14. | 31Y1-15160 | [1] | PISTON |
| K15. | S632-085004 | [1] | O-RING |
| K16. | S642-085003 | [2] | RING-BACK UP |
| K17. | Y420-140000 | [1] | SEAL-PISTON |
| K18. | Y310-140000 | [2] | RING-WEAR |
| K19. | Y440-140000 | [2] | RING-DUST |
| K24. | 31YC-66061 | [1] | WASHER-LOCK |
| K25. | 31YC-61133 | [1] | NUT-LOCK |
| K26. | S109-180904 | [12] | BOLT-SOCKET |
| K27. | 31Y1-15170 | [1] | BAND ASSY-R |
| 27-1. | 31Y1-15180 | [1] | BAND SUB ASSY |
| 27-2. | 31YC-18630 | [1] | BAND |
| 27-3. | S015-120452 | [2] | BOLT-HEX |
| 27-4. | S411-120002 | [2] | WASHER-SPRING |
| 27-5. | S071-023430 | [1] | U-BOLT |
| 27-6. | S201-101002 | [2] | NUT-HEX |
| 27-7. | S411-100002 | [2] | WASHER-SPRING |
| K28. | 31Y1-15190 | [1] | BAND ASSY-B |
| 28-1. | 31Y1-15200 | [1] | BAND SUB ASSY |
| 28-2. | 31YC-18640 | [1] | BAND |
| 28-3. | S015-120452 | [4] | BOLT-HEX |
| 28-4. | S411-120002 | [4] | WASHER-SPRING |
| 28-5. | S071-023430 | [2] | U-BOLT |
| 28-6. | S201-101002 | [4] | NUT-HEX |
| 28-7. | S411-100002 | [4] | WASHER-SPRING |
| K48. | 31Y1-20670 | [1] | BAND ASSY-B |
| 48-1. | 31Y1-20680 | [1] | BAND SUB ASSY |
| 48-2. | 31YC-32100 | [1] | BAND |
| 48-3. | S015-120452 | [4] | BOLT-HEX |
| 48-4. | S411-120002 | [4] | WASHER-SPRING |
| 48-5. | S071-023430 | [2] | U-BOLT |
| 48-6. | S201-101002 | [4] | NUT-HEX |
| 48-7. | S411-100002 | [4] | WASHER-SPRING |
| K29. | 31Y1-15210 | [1] | PIPE ASSY-R |
| K49. | 31Y1-21340 | [1] | PIPE ASSY-R |
| K30. | 31Y1-15220 | [1] | PIPE ASSY-B |
| K50. | 31Y1-20690 | [1] | PIPE ASSY-B |
| K31. | Y171-024004 | [2] | O-RING |
| K32. | S107-120554 | [4] | BOLT-SOCKET |
| K33. | S107-100554 | [4] | BOLT-SOCKET |
| K. | 31Y1-15230 | [1] | SEAL KIT |
| K. | 31Y1-18240 | [1] | SEAL KIT |
