Bulldog is the premiere provider of sealing solutions for heavy equipment worldwide,offering hydraulic cylinder kits,hydraulic pump seal kits, hydraulic breaker seal kits,hydraulic breaker diaphragms and walking motor seal kits, rock drill seal kits.
| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | BULLDOG,NICEPARTS |
| Model Number: | KOMATSU WB93S-5 backhoe loader |
| Minimum Order Quantity: | 1set |
| Price: | Consultation by letter |
| Packaging Details: | Carton packaging |
| Delivery Time: | 3-10 Days After Payment received |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal,Alipay |
| Supply Ability: | 150set |

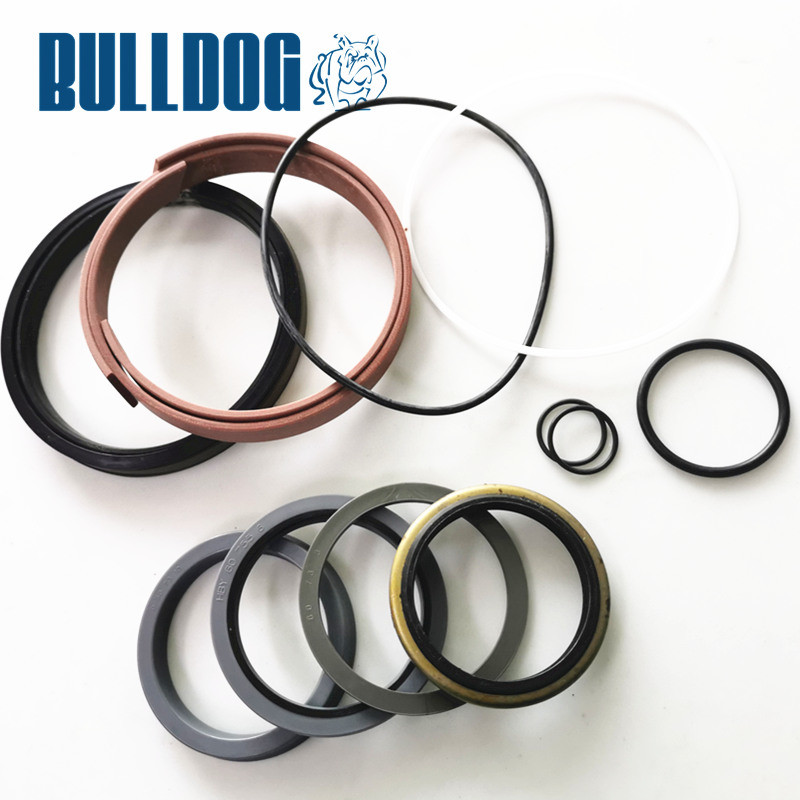

| Type: | KOMATSU WB93S-5 Backhoe Loader BOOM CYLINDER Seal Kits | Material: | PU+NBR+PTFE |
|---|---|---|---|
| Color: | Black+Blue+yellow | For: | KOMATSU Hydraulic System |
| Quality: | High-Quality | Rod: | 60mm |
| Piston: | 120mm | Condition: | 100%new |
| Stock: | In Stock | Model: | Komatsu Backhoe Loader |
| High Light: | WB93S-5 boom cylinder seal kits,Backhoe Loader Boom Cylinder Seal Kits,707-99-41270 loader seal kit |
||
Parts list
NO. |
PART NO. | DESCRIPTION | Q'TY |
| 707-00-0Y942 | CYLINDER, ASSEMBLY | 1 | |
| 1 | 707-76-60750 | BUSHING | 1 |
| 2 | 721-58-60580 | ROD, PISTON | 1 |
| 3 | 707-71-91280 | DOWEL | 1 |
| 4 | 07179-12074 | RING, BACK-UP | 1 |
| 5 | 707-29-12500 | HEAD, CYLINDER | 1 |
| 6 | 707-52-90350 | BUSHING | 1 |
| 7 | 707-36-12630 | PISTON | 1 |
| 8 | 01314-20812 | DOWEL | 1 |
| 9 | 707-71-60190 | PLUNGER | 1 |
| 10 | 04260-00635 | BALL, STEEL | 10 |
| 11 | 721-11-12932 | CYLINDER | 1 |
| 12 | 707-76-60740 | BUSHING | 2 |
| 13 | 707-87-25390 | PLUG | 1 |
| 14 | 707-88-36770 | GASKET | 1 |
| 15 | 707-80-13020 | SPRING | 1 |
| 16 | 707-83-13040 | VALVE | 1 |
| 707-99-41270 | KIT, GASKET | 1 | |
| 17 | 07145-00060 | SEAL, DUST | 2 |
| 18 | 141-63-93270 | GASKET | 1 |
| 19 | 07000-12120 | O-RING | 1 |
| 20 | 707-51-60030 | GASKET | 1 |
| 21 | 707-51-60640 | GASKET | 1 |
| 22 | 07146-02116 | RING, BACK-UP | 1 |
| 23 | 07000-12115 | O-RING | 1 |
| 24 | 07000-13042 | O-RING | 1 |
| 25 | 07156-01215 | RING, WEAR | 2 |
| 26 | 707-44-12180 | RING, PISTON | 1 |
| 27 | 02896-11018 | O-RING | 2 |
| 28 | 21D-09-89140 | FITTING, GREASE | 3 |
Parts exploded view
More service models
| D65E-12 | |||||||
| LIFT | 14X-63-01063 | 65 mm | 95 mm | KOM-707-98-28600 | |||
| 14X-63-01063 | 65 mm | KOM-707-52-10660 | |||||
| LIFT (TRIMMING) | 14X-63-07011 | 65 mm | 95 mm | KOM-707-98-28600 | |||
| 14X-63-07011 | 65 mm | KOM-707-52-10660 | |||||
| 14X-63-07012 | 65 mm | 95 mm | KOM-707-98-28600 | ||||
| 14X-63-07012 | 65 mm | KOM-707-52-10660 | |||||
| RIPPER | 14X-63-01052 | 70 mm | 140 mm | KOM-707-98-52130 | |||
| 14X-63-01052 | 70 mm | KOM-707-52-10700 | |||||
| TILT | 14Y-63-01032 | 70 mm | 140 mm | KOM-707-98-52140 | |||
| 14Y-63-01033 | 70 mm | 140 mm | KOM-707-98-52140 | ||||
| 707-01-0C300 | 70 mm | 140 mm | KOM-707-98-52210 | ||||
| 707-01-0C301 | 70 mm | 140 mm | KOM-707-99-52160 | ||||
| TRIMMING LH | 14X-63-07030 | 55 mm | 120 mm | KOM-707-98-40020 | |||
| 14X-63-07030 | 55 mm | KOM-07177-05530 | |||||
| TRIMMING RH | 14X-63-07040 | 55 mm | 120 mm | KOM-707-98-40020 | |||
| 14X-63-07040 | 55 mm | KOM-07177-05530 | |||||
Company warehouse
FAQ
1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.
2. Q: Can i make a small order first?
A: Yes, of course.
3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.
4. Q: Have you support the OEM or not?
A: Sure, we support the OEM,BULLDOG or as required.
5. Q: How can i pay the goods?
A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc
6. Q: How to ship the products?
A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.
7. Q: What’s the delivery time?
A: The goods can be shipped at 2-5 working days after receiving payment.
