Bulldog is the premiere provider of sealing solutions for heavy equipment worldwide,offering hydraulic cylinder kits,hydraulic pump seal kits, hydraulic breaker seal kits,hydraulic breaker diaphragms and walking motor seal kits, rock drill seal kits.
| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | BULLDOG,NICEPARTS |
| Model Number: | CATEE 325C,320EL,320D2,320DFM,320E,326FL,323D2L,324DL,325DL,323DLN,320D,320C |
| Minimum Order Quantity: | 1set |
| Price: | Consultation by letter |
| Packaging Details: | Carton packaging |
| Delivery Time: | 3-10 Days After Payment received |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal,Alipay |
| Supply Ability: | 100set |
| Type: | Hydraulic Pump Repair Seal Kit | Material: | HBNR+Steel |
|---|---|---|---|
| Color: | Black | For: | CATEE Hydraulic System |
| Quality: | High-Quality | Size: | Standard Size |
| High Light: | 204-2792,CATE320C Hydraulic Pump Seal Kit,204-2792 CATE Seal Kits |
||

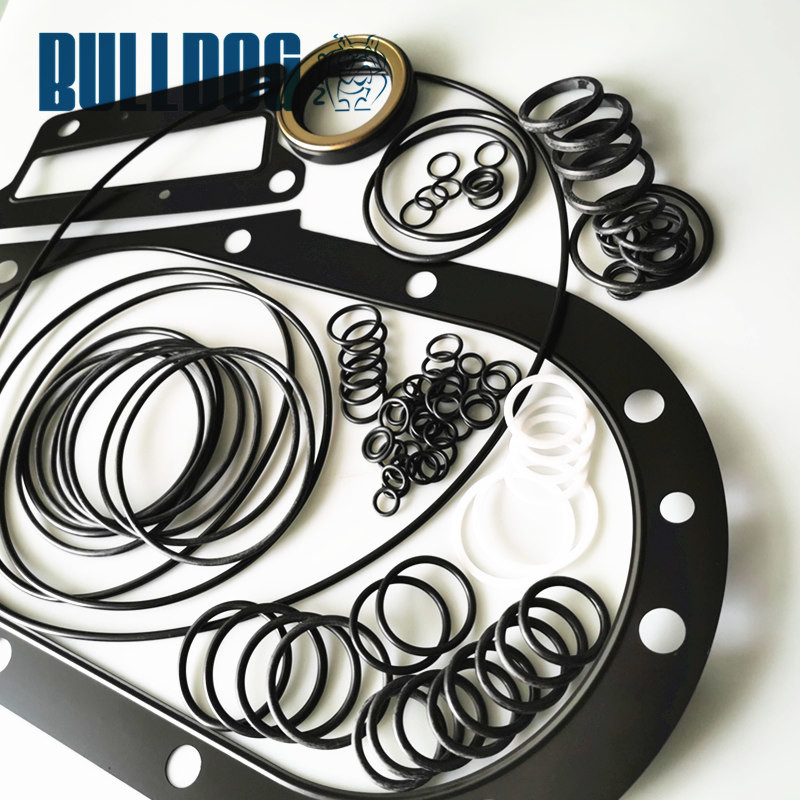

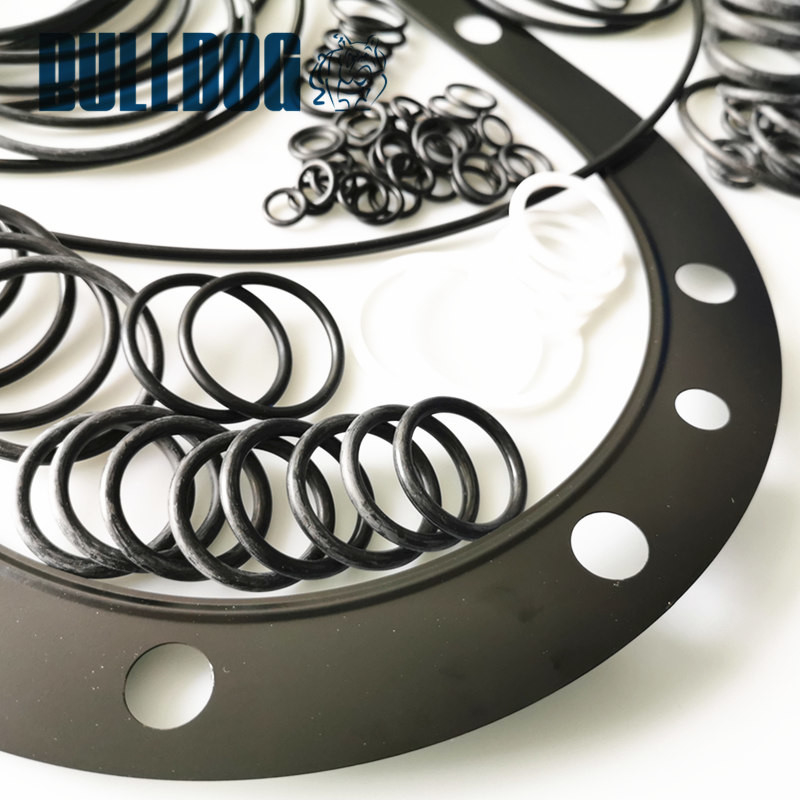

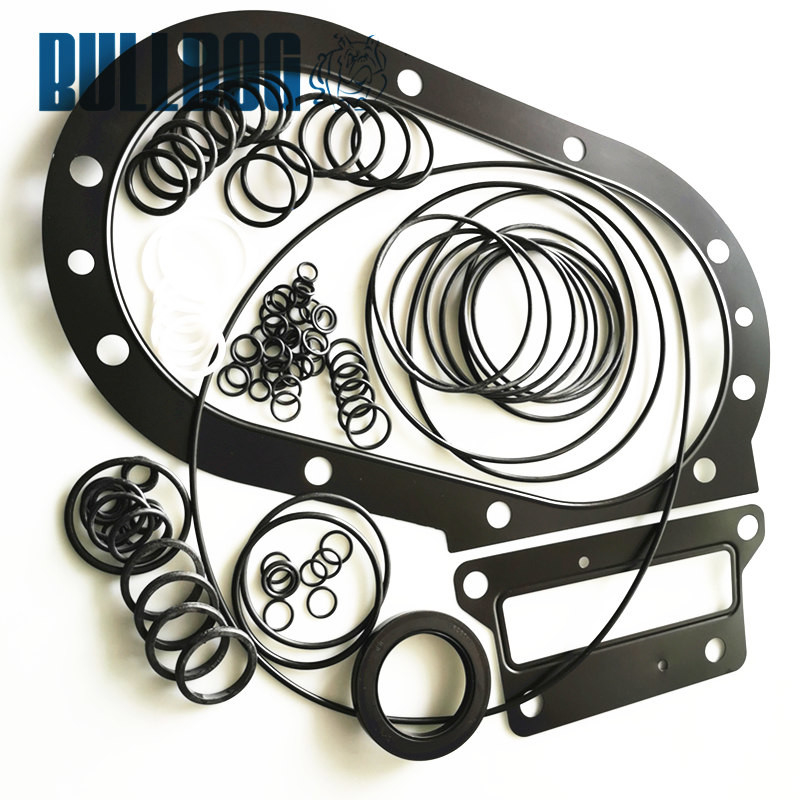

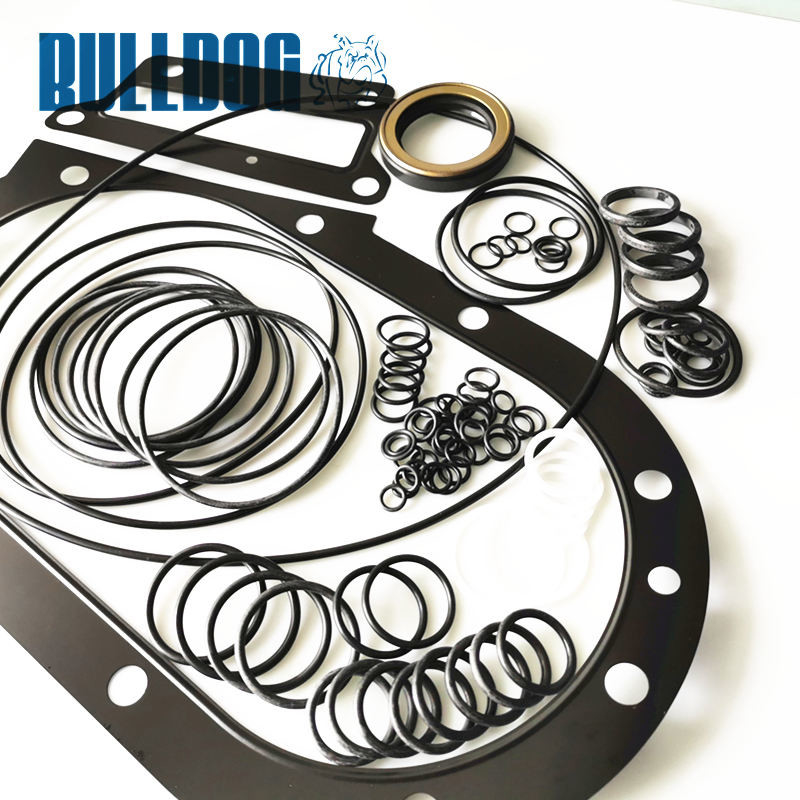

Model:CATEEE 204-2792 hydraulic pump Repair seal kit
Part Name:hydraulic pump seal kit
Pump Part Number:244-8477,173-3381,200-3366,272-6955,272-6959,422-1294,200-3369,200-3343
Part Number:204-2792
Pump Name:SBS120/SBS140
For:325C,320EL,320D2,320DFM,320E,326FL,323D2L,324DL,325DL,323DLN,320D,320C
Material:Steel+HNBR+PTFE
CertifiCATEEion: IOS 9000
Packaging Details: bag or box +carton
Delivery Time:2-5days upon payments confirmed
Brand:BULLDOG, OEM or as Required
Payment Terms:TT/Paypal/WEST UNION
Supply Ability:100
MOQ:1PCS
Parts list
| NO. | Part Number | Quantity | Part Name |
| 1 | 209-5889 | 1 | ACTUATOR GP-PUMP |
| 2 | 177-2470 | 1 | COVER |
| 3 | 7X-25571 | 1 | BOLT |
| 4 | 177-2471 | 1 | COVER |
| 5 | 209-5890 | 1 | ACTUATOR GP-PUMP |
| 6 | 8T-4176 | 2 | BOLT |
| 7 | 8T-4140 | 4 | BOLT |
| 8 | 094-1882 | 16 | PLUG |
| 9 | 200-3333 | 1 | HEAD-PUMP |
| 10 | 129-7979 | 4 | DOWEL |
| 11 | 9S-4185 | 2 | PLUG-O-RING |
| 12 | 3K-0360 | 2 | SEAL-O-RING |
| 13 | 8T-4136 | 20 | BOLT |
| 14 | 247-8782 | 1 | BODY |
| 15 | 150-5782 | 2 | COVER |
| 16 | 8T-4139 | 10 | BOLT |
| 17 | 129-7863 | 1 | COVER |
| 18 | 129-7857 | 1 | GASKET |
| 19 | 179-9763 | 1 | FLANGE |
| 20 | 189-9763 | 8 | SEAL-O-RING |
| 21 | 095-0946 | 2 | RING-RETAINING |
| 22 | 129-7921 | 2 | RING-RETAINING |
| 23 | 192-0573 | 4 | PIN-DOWEL |
| 24 | 188-4210 | 2 | PISTON AS |
| 25 | 193-1736 | 4 | SEAL-O-RING |
| 26 | 194-8374 | 1 | BARREL AS |
| 27 | 177-8740 | 1 | SEAL-O-RING |
| 28 | 190-4896 | 2 | PLUG |
| 29 | 247-8920 | 2 | ORIFICE |
| 30 | 200-3406 | 1 | PUMP GP-GEAR |
| NPR | 3G-5083 | 1 | SEAL-LIP TYPE |
| NPR | 9T-0836 | 1 | RING-RETAINING |
| NPR | 204-2792 | 1 | KIT-SEAL |
| 31 | 8T-3338 | 2 | SEAL-O-RING |
| 32 | 194-8325 | 2 | SET-BEARING |
| 33 | 096-4389 | 18 | SPRING |
| 34 | 7Y-4215 | 2 | SPACER |
| 35 | 173-3427 | 2 | GUIDE-BALL |
| 36 | 129-7853 | 2 | PLATE-CREEP |
| 37 | 194-8397 | 2 | SWASHPLATE AS |
| 38 | 177-2583 | 4 | BEARING |
| 39 | 129-7927 | 2 | BEARING |
| 40 | 129-7855 | 1 | GASKET |
| 41 | 200-3325 | 1 | SHAFT-DRIVEN |
| 42 | 7M-8485 | 2 | SEAL-O-RING |
| 43 | 8J-4645 | 2 | PLUG |
| 44 | 8T-4196 | 2 | BOLT |
| 45 | 4I-1022 | 2 | ORIFICE |
| 46 | 094-1875 | 6 | DOWEL |
| 47 | 200-3334 | 1 | COVER |
| 48 | 200-3413 | 1 | COUPLING |
| 49 | 194-8371 | 1 | BARREL AS |
| 50 | 8T-4192 | 10 | BOLT |
| 51 | 129-7854 | 1 | CASE |
| 52 | 200-3417 | 1 | SHAFT-DRIVE |
| 53 | 129-7925 | 1 | SEAL-LIP TYPE |
| 54 | 096-3983 | 1 | RING-RETAINING |
| 55 | 096-3944 | 1 | SEAL-O-RING |
| 56 | 8T-4175 | 2 | BOLT |
Parts exploded view
Company warehouse
FAQ
1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.
2. Q: Can i make a small order first?
A: Yes, of course.
3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.
4. Q: Have you support the OEM or not?
A: Sure, we support the OEM,BULLDOG or as required.
5. Q: How can i pay the goods?
A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc
6. Q: How to ship the products?
A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.
7. Q: What’s the delivery time?
A: The goods can be shipped at 2-5 working days after receiving payment.
