Bulldog is the premiere provider of sealing solutions for heavy equipment worldwide,offering hydraulic cylinder kits,hydraulic pump seal kits, hydraulic breaker seal kits,hydraulic breaker diaphragms and walking motor seal kits, rock drill seal kits.
| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | BULLDOG,NICEPARTS |
| Model Number: | Furukawa Fxj475 |
| Minimum Order Quantity: | MOQ:1set |
| Price: | Consultation by letter |
| Packaging Details: | Carton packaging |
| Delivery Time: | 3-10 Days After Payment received |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal,Alipay |
| Supply Ability: | 500set |
| Material: | PTFE+HNBR+PU | Color: | Blue |
|---|---|---|---|
| AppliCATEion: | Furukawa Hydraulic Breaker | Type: | Hydraulic Breaker Seal Kit,Hydraulic Breaker Hammer Seal Kit |
| Weight: | 1.5KG | TOOL: | 170MM |
| High Light: | Fxj475 Hammer Seal Kit,902409-920050 Hammer Seal Kit,902409-920060 breaker seal kit |
||
Model:Furukawa Fxj475 hydraulic breaker
Part Name: Hydraulic breaker seal kit, Hydraulic hammer seal kit

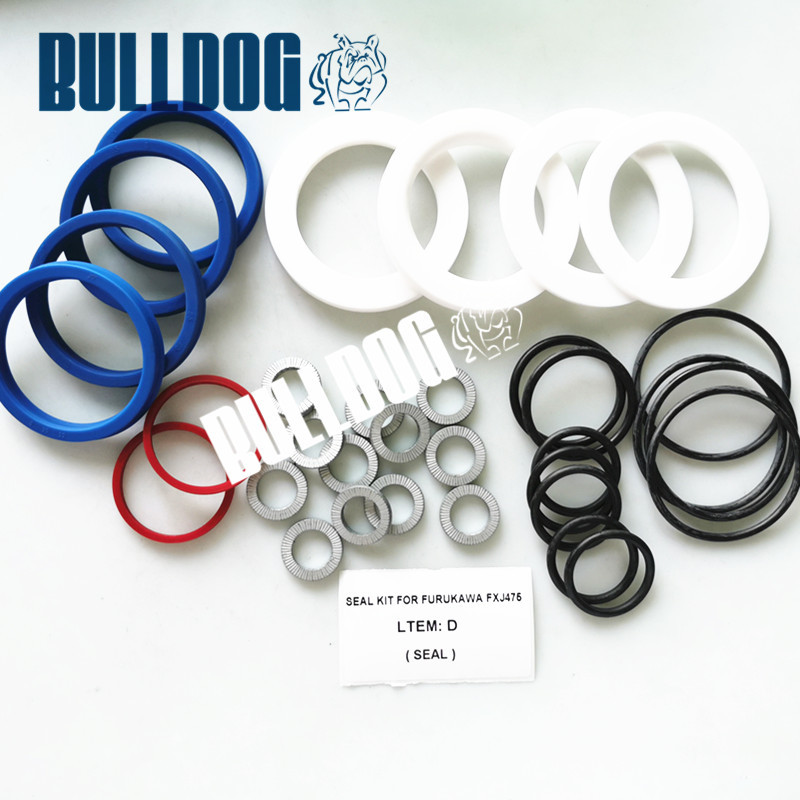

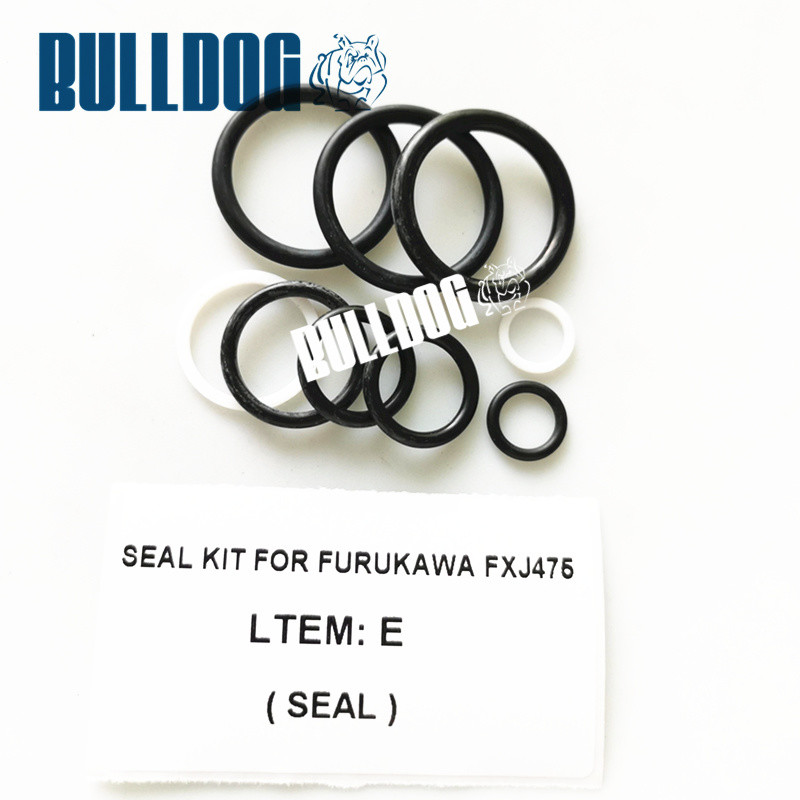

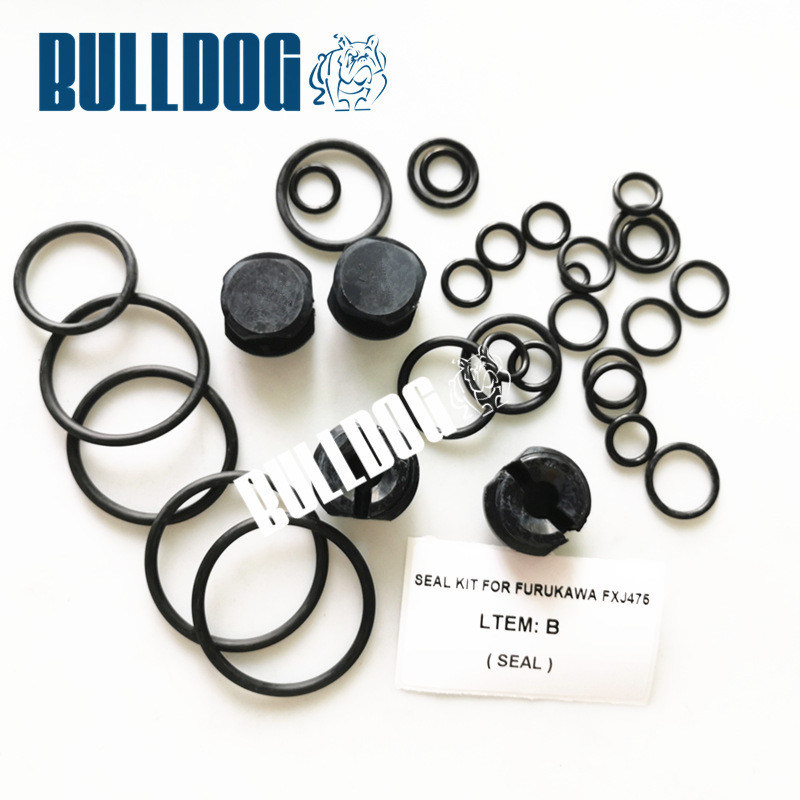

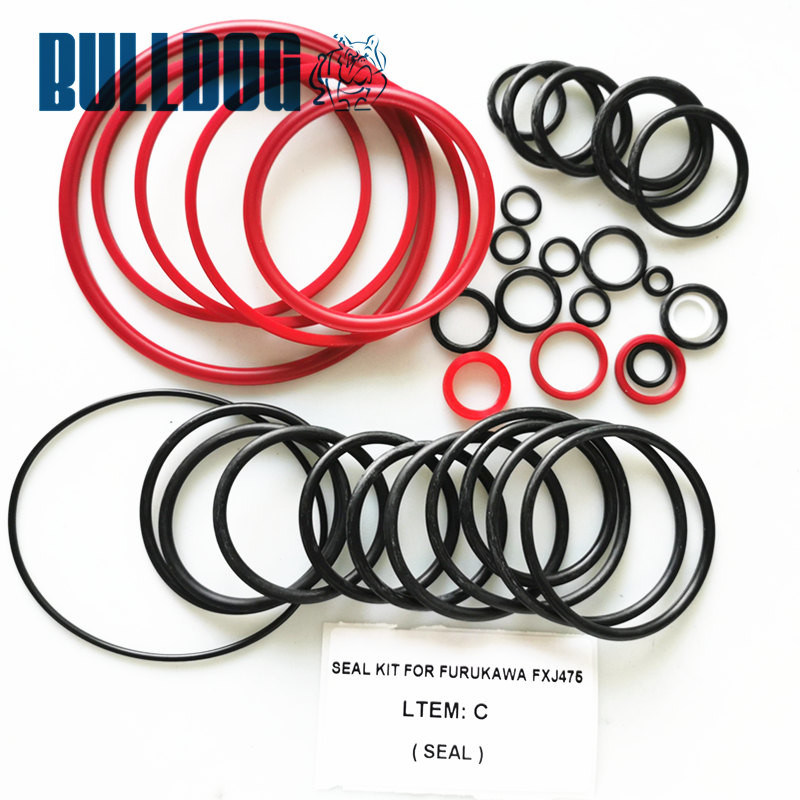

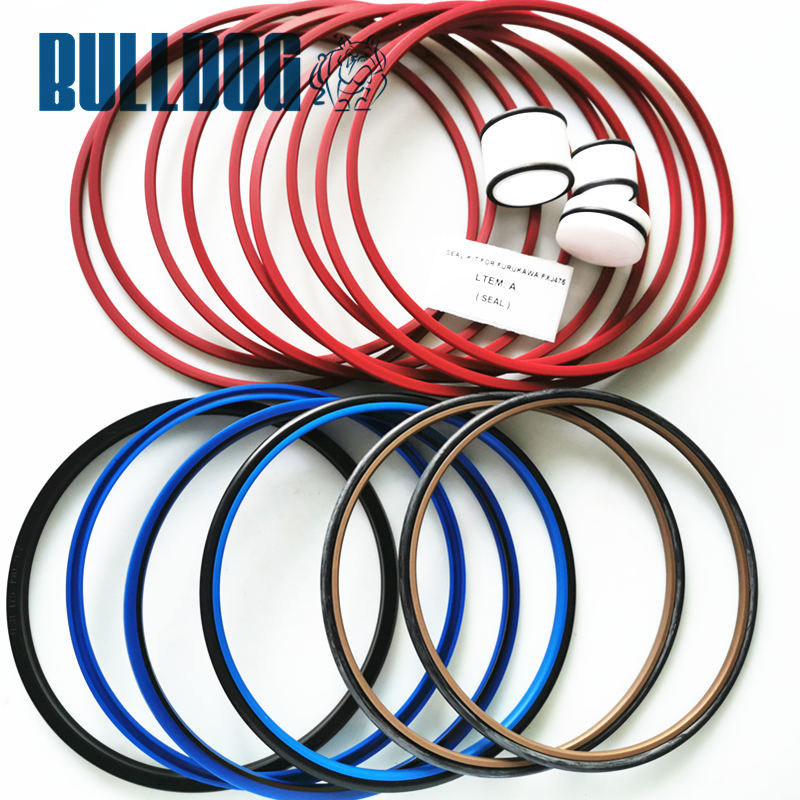

Part Number:902409-920050 (A),902409-920060 (B),902409-920070(C),902409-920080(D),902407-920090(E)
Tool:170MM
CertifiCATEEion:IOS 9001
Packaging Details: bag or box +carton
Material: TPU+HNBR+PTFE
Delivery Time: 2-5days upon payments confirmed
Position :FURUKAWA Hydraulic Breaker Systerm
Brand:TOPARTS, OEM or as Required
Payment Terms: TT/Paypal/WEST UNION
Supply Ability:500
MOQ:1set
Parts list
| ITEM | PART NO. | PART NAME | Q’TY |
| 101 | 002409-100010 | CYLINDER | 1 |
| A01 | * | CYLINDER | 1 |
| A02 | FXJ475-10105 | HELI-COIL INSERT | 8 |
| A03 | FXJ475-10104 | HELI-COIL INSERT | 4 |
| A04 | 002409-900010 | HELI-COIL INSERT | 4 |
| 102 | 002409-100030 | CYLINDER LINER | 1 |
| 103 | 002409-100040 | U-PACKING | 1 |
| 104 | 002409-100050 | BUFFER RING | 1 |
| 105 | 002409-100060 | SCRAPER | 1 |
| 106 | 002409-100070 | DUAL SEAL | 8 |
| 107 | 002409-100080 | DISTANCE WASHER | 1 |
| 108 | 002409-100090 | SEAL RETAINER | 1 |
| 109 | 002409-100100 | GLIDE RING | 1 |
| 110 | 002409-100110 | STEP SEAL | 1 |
| 111 | 002409-100120 | GLIDE RING | 1 |
| 112 | FXJ47510120 | PLUG | 1 |
| 113 | 160011-00040 | O-RING | 3 |
| 114 | 160011-00018 | O-RING | 2 |
| 115 | 084891-06000 | PLUG | 1 |
| 116 | 160011-00024 | O-RING | 1 |
| 117 | 084891-02000 | PLUG | 8 |
| 118 | 160011-00011 | O-RING | 8 |
| 119 | 084891-03000 | PLUG | 6 |
| 120 | 160011-00014 | O-RING | 6 |
| 121 | 084891-04000 | PLUG | 2 |
| 122 | 002409-100130 | FRONT HOLDER | 1 |
| 123 | 002409-100140 | FRONT BUSH | 1 |
| 124 | 002409-100150 | STOP PIN | 4 |
| 125 | 002407-100110 | A-PLUG | 4 |
| 126 | 002409-100160 | ROD PIN | 2 |
| 127 | 001300-20118 | KNOCK PIN | 1 |
| 128 | FXJ475-10121 | BUSH | 1 |
| 129 | 160011-00029 | O-RING | 2 |
| 130 | FXJ475-10121 | BUSH | 1 |
| 151 | 002409-110010 | PISTON | 1 |
| 181 | FXJ475-20121 | CHECK VALVE | 1 |
| 182 | 002407-120010 | PORT BLOCK | 1 |
| 183 | 000500-220110 | SPRING WASHER | 6 |
| 184 | 102032-14045 | SOCKET BOLT | 6 |
| 185b | 084869-06000 | MALE CONNECTOR | 1 |
| B01 | 160011-00024 | *O-RING | 1 |
| 186 | FXJ475-30113 | CAP | 1 |
| 187 | 084891-02000 | GPF PLUG | 2 |
| 188 | 160011-00011 | O-RING | 2 |
| 189 | 166152-02000 | HOLLOW PLUG | 1 |
| 381 | 002409-250010 | MOIL POINT ROD | 1 |
| 381 | 002409-250020 | FLAT ROD | 1 |
| 381 | 002409-250030 | WEDGE POINT ROD | 1 |
| 381 | 002409-250040 | BALL POINT ROD | 1 |
| 401 | 002409-300020 | BACK HEAD | 1 |
| 402 | FXJ475-30103 | CHARGING VALVE | 1 |
| 403 | FXJ475-30109 | PLUG | 1 |
| 404 | 160011-00006 | O-RING | 1 |
| 405 | 160011-00018 | O-RING | 1 |
| 406 | 002409-100070 | DUAL SEAL | 1 |
| 407 | 084891-10000 | PLUG | 2 |
| 408 | 160011-00029 | O-RING | 2 |
| 409 | 084891-12000 | PLUG | 2 |
| 410 | 160011-00038 | O-RING | 2 |
| 411 | 002409-130040 | CONNECTOR | 2 |
| 412 | 161011-00044 | O-RING | 2 |
| 413 | FXJ475-30114 | STICKER | -2 |
| 451 | 002409-360010 | BOLT | 4 |
| 452 | 002409-360020 | WASHER | 4 |
| 902409-920050 | SEAL KIT (A) (R1) | ||
| 902409-920060 | SEAL KIT (B) (R2) | ||
| 902409-920050 | SEAL KIT (A) | ||
| 851 | 002409-100040 | *U-PACKING | 1 |
| 852 | 002409-100050 | *BUFFER RING | 1 |
| 853 | 002409-100060 | *SCRAPER | 1 |
| 854 | 002409-100070 | *DUAL SEAL | 9 |
| 855 | 002409-100100 | *GLIDE RING | 1 |
| 856 | 002409-100110 | *STEP SEAL | 1 |
| 857 | 002409-100120 | *GLIDE RING | 1 |
| 858 | FXJ475-10120 | *PLUG | 1 |
| 859 | 160011-00040 | *O-RING | 3 |
| 860 | 160011-00029 | *O-RING | 2 |
| 861 | FXJ475-10121 | *BUSH | 1 |
| 862 | FXJ475-10121 | *BUSH | 1 |
| 902409-920060 | SEAL KIT (B) | ||
| 851 | 160011-00018 | *O-RING | 3 |
| 852 | 160011-00024 | *O-RING | 2 |
| 853 | 160011-00011 | *O-RING | 10 |
| 854 | 160011-00014 | *O-RING | 6 |
| 855 | 002407-100110 | *A-PLUG | 4 |
| 856 | 160011-00006 | *O-RING | 1 |
| 857 | 160011-00029 | *O-RING | 2 |
| 858 | 160011-00038 | *O-RING | 2 |
| 859 | 161011-00044 | *O-RING | 2 |
| FXJ475-70001 | ACCUMULATOR ASSEMBLY | ||
| 501 | FXJ475-70101 | *ACCUMULATOR COVER | 1 |
| 502 | FXJ475-70102 | *ACCUMULATOR BODY | 1 |
| 503 | FXJ475-70111 | *DIAPHRAGM | 1 |
| 504 | FXJ475-70219 | *FACE SEAL | 1 |
| 505 | 102033-20060 | *SOCKET BOLT | 16 |
| 506 | FXJ475-70115 | *SOCKET BOLT | 4 |
| 507 | 007120-70134 | *VALVE | 1 |
| 508 | 007010-70029 | *CAP | 1 |
| 509 | 007010-70030 | *PLUG | 1 |
| 510 | 160011-00005 | *O-RING | 1 |
| 511 | 160011-00014 | *O-RING | 2 |
| 902409-920070 | SEAL KIT (C) (R3) |
Parts exploded view
Company warehouse
FAQ
1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.
2. Q: Can i make a small order first?
A: Yes, of course.
3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.
4. Q: Have you support the OEM or not?
A: Sure, we support the OEM,BULLDOG or as required.
5. Q: How can i pay the goods?
A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc
6. Q: How to ship the products?
A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.
7. Q: What’s the delivery time?
A: The goods can be shipped at 2-5 working days after receiving payment.
