Bulldog is the premiere provider of sealing solutions for heavy equipment worldwide,offering hydraulic cylinder kits,hydraulic pump seal kits, hydraulic breaker seal kits,hydraulic breaker diaphragms and walking motor seal kits, rock drill seal kits.
| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | BULLDOG,NICEPARTS |
| Model Number: | KOMATSU D155AX-3 Bulldozer |
| Minimum Order Quantity: | 1set |
| Price: | Consultation by letter |
| Packaging Details: | Carton packaging |
| Delivery Time: | 3-10 Days After Payment received |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal,Alipay |
| Supply Ability: | 100set |

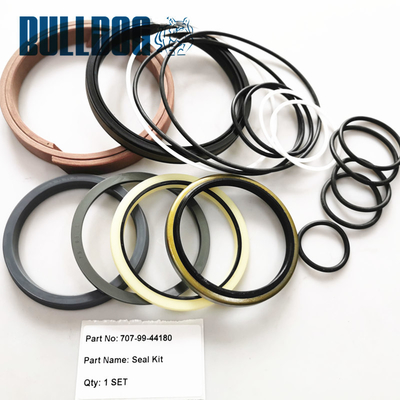

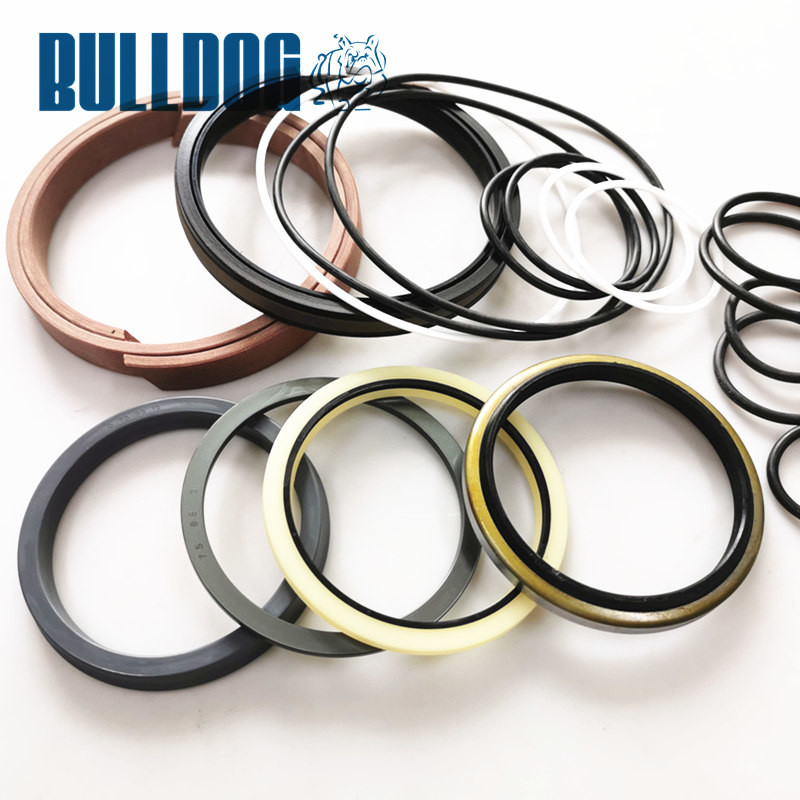

| Type: | KOMATSU D155AX-3 Bulldozer BLADE LIFT CYLINDER Seal Kits | Material: | PU+NBR+PTFE |
|---|---|---|---|
| Color: | Black+Blue+yellow | For: | KOMATSU Hydraulic System |
| Quality: | High-Quality | Rod: | 75mm |
| Piston: | 120mm | Condition: | 100%new |
| Stock: | In Stock | Model: | Komatsu Bulldozer |
| High Light: | D155AX-3 Hydraulic Cylinder Seal Kit,707-99-44180 Hydraulic Cylinder Seal Kit,707-98-44200 seal kit lift cylinder |
||
Parts list
| D155A-5 BLADE LIFT CYLIND | |||
| Item | Part No. | Part Name |
Qty |
| G-1 | ( 707-02-X7440) | CYLINDER GROUP,L.H. (FINAL COATING) | 1 |
| ( 707-02-X7150) | CYLINDER GROUP,L.H. (FINAL COATING) | 1 | |
| G-2 | ( 707-02-X7450) | CYLINDER GROUP,R.H. (FINAL COATING) | 1 |
| ( 707-02-X7160) | CYLINDER GROUP,R.H. (FINAL COATING) | 1 | |
| 707-02-00340 | CYLINDER ASS'Y | 1 | |
| 17A-63-02110 | CYLINDER ASS'Y | 1 | |
| 1 | 175-63-22540 | CYLINDER | 1 |
| 2 | 175-63-12540 | BUSHING | 2 |
| 3 | 707-29-12370 | HEAD,CYLINDER | 1 |
| 707-29-12860 | HEAD,CYLINDER | 1 | |
| 4 | 707-52-90520 | BUSHING | 1 |
| 707-52-10750 | BUSHING | 1 | |
| 5 | 707-51-75030 | PACKING,ROD (KIT) | 1 |
| 707-51-75211 | PACKING,ROD (KIT) | 1 | |
| 5A | 707-51-75640 | RING,BUFFER (KIT) | 1 |
| 6 | 144-63-94170 | SEAL,DUST (KIT) | 1 |
| 7 | 07179-13089 | RING,SNAP | 1 |
| 8 | 07000-12115 | O-RING (KIT) | 1 |
| 9 | 07146-02116 | RING,BACK-UP (KIT) | 1 |
| 10 | 07000-02120 | O-RING (KIT) | 1 |
| 11 | 175-63-22520 | ROD,PISTON | 1 |
| 12 | 707-66-75020 | CAP | 1 |
| 13 | 707-88-15010 | SHIM, 1.0MM | 10 |
| 14 | 01011-81805 | BOLT | 4 |
| 15 | 707-41-11840 | WASHER | 4 |
| 175-63-22530 | PISTON ASS'Y | 1 | |
| 16 | 707-37-12010 | PISTON | 1 |
| 17 | 707-83-10270 | VALVE,(L=77.5MM) | 2 |
| 707-83-10260 | VALVE,(L=80.5MM) | 1 | |
| 707-83-10280 | VALVE,(L=74.5MM) | 1 | |
| 18 | 707-84-10240 | SEAT | 8 |
| 19 | 07000-12055 | O-RING (KIT) | 1 |
| 20 | 07001-02055 | RING,BACK-UP (KIT) | 2 |
| 20A | 707-40-12050 | RETAINER | 1 |
| 21 | 707-44-12180 | RING,PISTON (KIT) | 1 |
| 22 | 707-39-12110 | RING,WEAR (KIT) | 2 |
| 23 | 707-40-12170 | SPACER | 2 |
| 24 | 707-83-10073 | VALVE | 4 |
| 25 | 01252-31235 | BOLT | 6 |
| 26 | 17A-54-11521 | HOOK | 1 |
| 27 | 01010-51245 | BOLT | 1 |
| 28 | 01643-31232 | WASHER | 1 |
| 17A-63-14100 | VALVE ASS'Y,QUICK DROP | 1 | |
| 29 | BODY | 1 | 65001- |
| 30 | VALVE | 1 | 65001- |
| 31 | VALVE | 1 | 65001- |
| 32 | 195-63-14180 | SPRING | 1 |
| 33 | 01642-21216 | WASHER | 1 |
| 34 | 195-63-14162 | COLLAR | 1 |
| 35 | 07000-12055 | O-RING (KIT) | 1 |
| 36 | 01011-51615 | BOLT | 2 |
| 37 | 01643-31645 | WASHER | 2 |
| 38 | 17A-63-12170 | TUBE,L.H. | 1 |
| 17A-63-12270 | TUBE,R.H. | 1 | |
| 39 | 07000-13030 | O-RING (KIT) | 1 |
| 40 | 01010-50840 | BOLT | 2 |
| 41 | 01010-50855 | BOLT | 2 |
| 42 | 01643-30823 | WASHER | 4 |
| 43 | 17A-63-12180 | TUBE,L.H. | 1 |
| 17A-63-12280 | TUBE,R.H. | 1 | |
| 44 | 07000-13048 | O-RING (KIT) | 1 |
| 45 | 01010-51275 | BOLT | 5 |
| 46 | 01643-31232 | WASHER | 5 |
| 47 | 07000-13038 | O-RING (KIT) | 2 |
| 48 | 07000-13045 | O-RING | 1 |
| 49 | 01010-51065 | BOLT | 4 |
| 50 | 01643-31032 | WASHER | 2 |
| 51 | 07282-12793 | CLAMP | 1 |
| 52 | 01010-51020 | BOLT | 2 |
| 53 | 01643-31032 | WASHER | 2 |
| 707-99-44180 | SERVICE KIT | 2 | |
| 707-98-44200 | SERVICE KIT | 2 | |
Parts exploded view
More service models
| D65E-12 | |||||||
| LIFT | 14X-63-01063 | 65 mm | 95 mm | KOM-707-98-28600 | |||
| 14X-63-01063 | 65 mm | KOM-707-52-10660 | |||||
| LIFT (TRIMMING) | 14X-63-07011 | 65 mm | 95 mm | KOM-707-98-28600 | |||
| 14X-63-07011 | 65 mm | KOM-707-52-10660 | |||||
| 14X-63-07012 | 65 mm | 95 mm | KOM-707-98-28600 | ||||
| 14X-63-07012 | 65 mm | KOM-707-52-10660 | |||||
| RIPPER | 14X-63-01052 | 70 mm | 140 mm | KOM-707-98-52130 | |||
| 14X-63-01052 | 70 mm | KOM-707-52-10700 | |||||
| TILT | 14Y-63-01032 | 70 mm | 140 mm | KOM-707-98-52140 | |||
| 14Y-63-01033 | 70 mm | 140 mm | KOM-707-98-52140 | ||||
| 707-01-0C300 | 70 mm | 140 mm | KOM-707-98-52210 | ||||
| 707-01-0C301 | 70 mm | 140 mm | KOM-707-99-52160 | ||||
| TRIMMING LH | 14X-63-07030 | 55 mm | 120 mm | KOM-707-98-40020 | |||
| 14X-63-07030 | 55 mm | KOM-07177-05530 | |||||
| TRIMMING RH | 14X-63-07040 | 55 mm | 120 mm | KOM-707-98-40020 | |||
| 14X-63-07040 | 55 mm | KOM-07177-05530 | |||||
