Bulldog is the premiere provider of sealing solutions for heavy equipment worldwide,offering hydraulic cylinder kits,hydraulic pump seal kits, hydraulic breaker seal kits,hydraulic breaker diaphragms and walking motor seal kits, rock drill seal kits.
| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | BULLDOG,NICEPARTS |
| Model Number: | Komatsu WA320L-5 WA320-6 Wheel Loader |
| Minimum Order Quantity: | 1set |
| Price: | Consultation by letter |
| Packaging Details: | Carton packaging |
| Delivery Time: | 3-10 Days After Payment received |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal,Alipay |
| Supply Ability: | 200set |

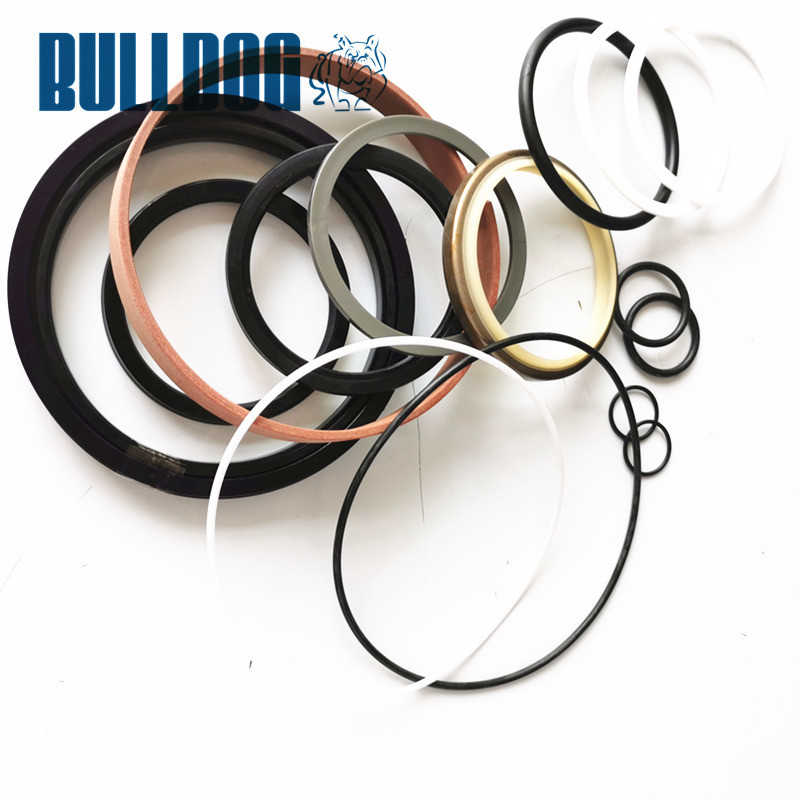

| Type: | KOMATSU WA320L-5 WA320-6 Wheel Loader Hydraulic Cylinder Seal Kit | Material: | PU+NBR+PTFE |
|---|---|---|---|
| Color: | Black+Blue+yellow | For: | KOMATSU Hydraulic System |
| Quality: | High-Quality | Rod: | 75mm |
| Piston: | 140mm | Condition: | 100%new |
| Stock: | In Stock | Model: | Komatsu Wheel Loader |
| High Light: | Wa320 Hydraulic Cylinder Repair Seals,707-99-53170 Hydraulic Cylinder Repair Seals,707-99-53170 Boom Seal Kit |
||
Parts list
| WA320-5 LIFT CYLINDER | |||
| NO. | Part number | Product name | QTY |
| G1 | ( 707-01-XF060) | CYLINDER GROUP,LIFT?L.H. | 1 |
| ( 707-01-XU360) | CYLINDER GROUP,LIFT?L.H. (FINAL COATING) | 1 | |
| ( 707-01-XF070) | CYLINDER GROUP,LIFT?R.H. | 1 | |
| ( 707-01-XU370) | CYLINDER GROUP,LIFT?R.H. (FINAL COATING) | 1 | |
| 707-01-0F060 | CYLINDER ASS'Y | 1 | |
| 1 | 707-13-14690 | CYLINDER | 1 |
| 2 | 707-76-85010 | BUSHING | 1 |
| 3 | 424-09-12320 | SEAL,DUST (KIT) | 2 |
| 4 | 707-27-14860 | HEAD,CYLINDER | 1 |
| 5 | 707-52-90520 | BUSHING | 1 |
| 6 | 707-51-75030 | PACKING,ROD (KIT) | 1 |
| 7 | 707-51-75640 | RING,BUFFER | 1 |
| 8 | 144-63-94170 | SEAL,DUST (KIT) | 1 |
| 9 | 07179-13089 | RING,SNAP | 1 |
| 10 | 07000-12135 | O-RING (KIT) | 1 |
| 11 | 07146-02136 | RING,BACK-UP (KIT) | 1 |
| 12 | 01010-81455 | BOLT | 12 |
| 13 | 01643-31445 | WASHER | 12 |
| 14 | 707-59-75050 | ROD,PISTON | 1 |
| 15 | 07000-15075 | O-RING (KIT) | 1 |
| 16 | 707-35-90810 | RING,BACK-UP (KIT) | 2 |
| 17 | 707-36-14040 | PISTON | 1 |
| 18 | 707-44-14180 | RING,PISTON (KIT) | 1 |
| 19 | 07156-01417 | RING,WEAR (KIT) | 1 |
| 20 | 01310-01216 | SCREW | 1 |
| 21 | 707-86-66840 | TUBE,L.H. | 1 |
| 707-86-66860 | TUBE,R.H. | 1 | |
| 22 | 707-86-66850 | TUBE,L.H. | 1 |
| 707-86-66870 | TUBE,R.H. | 1 | |
| 23 | 07000-13030 | O-RING (KIT) | 2 |
| 24 | 01435-01040 | BOLT | 4 |
| 25 | 01435-01055 | BOLT | 4 |
| 26 | 707-88-02750 | PLATE | 1 |
| 27 | 07283-32738 | CLIP | 2 |
| 28 | 01597-01009 | NUT | 4 |
| 29 | 01643-31032 | WASHER | 4 |
| 30 | 02896-11018 | O-RING (KIT) | 2 |
| K | 707-99-53170 | SERVICE KIT,LIFT CYLINDER | 2 |
Parts exploded view
More service models
| WA320-6 | |||||||||
| BOOM LIFT | 707-01-0F060 | P-UB-14 | 75 mm | 140 mm | KOM-707-99-53170 | ||||
| 707-01-0F060 | Bushing | 75 mm | KOM-707-52-90520 | ||||||
| 707-01-0F060 | P-UB-14 | 75 mm | 140 mm | KOM-707-99-53170 | |||||
| 707-01-0F060 | Bushing | 75 mm | KOM-707-52-90521 | ||||||
| 707-01-0F060 | P-UB-14 | 75 mm | 140 mm | KOM-707-99-53170 | |||||
| 707-01-0F060 | Bushing | 75 mm | KOM-707-52-90521 | ||||||
| 707-01-0F060 | P-UB-14 | 75 mm | 140 mm | KOM-707-99-53170 | |||||
| 707-01-0F060 | Bushing | 75 mm | KOM-707-52-90520 | ||||||
| BUCKET | 707-01-0F080 | P-UB-14 | 80 mm | 160 mm | KOM-707-99-62120 | ||||
| 707-01-0F080 | Bushing | 80 mm | KOM-707-52-90560 | ||||||
| 707-01-0F080 | P-UB-14 | 80 mm | 160 mm | KOM-707-99-62120 | |||||
| 707-01-0F080 | Bushing | 80 mm | KOM-707-52-90561 | ||||||
| 707-01-0F080 | P-UB-14 | 80 mm | 160 mm | KOM-707-99-62120 | |||||
| 707-01-0F080 | Bushing | 80 mm | KOM-707-52-90561 | ||||||
| 707-01-0F080 | P-UB-14 | 80 mm | 160 mm | KOM-707-99-62120 | |||||
| 707-01-0F080 | Bushing | 80 mm | KOM-707-52-90560 | ||||||
| 707-01-0F940 | High Lift | P-UB-14 | 80 mm | 160 mm | KOM-707-99-62120 | ||||
| 707-01-0F940 | High Lift | Bushing | 80 mm | KOM-707-52-90560 | |||||
| 707-01-0F940 | High Lift | P-UB-14 | 80 mm | 160 mm | KOM-707-99-62120 | ||||
| 707-01-0F940 | High Lift | Bushing | 80 mm | KOM-707-52-90561 | |||||
| 707-01-0F940 | High Lift | P-UB-14 | 80 mm | 160 mm | KOM-707-99-62120 | ||||
| 707-01-0F940 | High Lift | Bushing | 80 mm | KOM-707-52-90561 | |||||
| 707-01-0F940 | High Lift | P-UB-14 | 80 mm | 160 mm | KOM-707-99-62120 | ||||
| 707-01-0F940 | High Lift | Bushing | 80 mm | KOM-707-52-90560 | |||||
| 707-01-0G220 | Large | P-UB-14 | 90 mm | 180 mm | KOM-707-99-64570 | ||||
| Capacity | |||||||||
| 707-01-0G220 | Large | Bushing | 90 mm | KOM-707-52-90681 | |||||
| Capacity | |||||||||
| STEERING LH | 707-00-0H470 | P-UB-14 | 40 mm | 70 mm | KOM-707-99-14790 | ||||
| 707-00-0H470 | Bushing | 40 mm | KOM-707-52-90150 | ||||||
| 707-00-0H470 | P-UB-14 | 40 mm | 70 mm | KOM-707-99-14790 | |||||
| 707-00-0H470 | Bushing | 40 mm | KOM-707-52-90151 | ||||||
| 707-00-0H470 | P-UB-14 | 40 mm | 70 mm | KOM-707-99-14790 | |||||
| 707-00-0H470 | Bushing | 40 mm | KOM-707-52-90150 | ||||||
| 707-00-0H470 | P-UB-14 | 40 mm | 70 mm | KOM-707-99-14790 | |||||
| 707-00-0H470 | Bushing | 40 mm | KOM-707-52-90150 | ||||||
| STEERING RH | 707-00-0H480 | P-UB-14 | 40 mm | 70 mm | KOM-707-99-14790 | ||||
| 707-00-0H480 | Bushing | 40 mm | KOM-707-52-90150 | ||||||
| 707-00-0H480 | P-UB-14 | 40 mm | 70 mm | KOM-707-99-14790 | |||||
| 707-00-0H480 | Bushing | 40 mm | KOM-707-52-90151 | ||||||
| 707-00-0H480 | P-UB-14 | 40 mm | 70 mm | KOM-707-99-14790 | |||||
Company warehouse
FAQ
1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.
2. Q: Can i make a small order first?
A: Yes, of course.
3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.
4. Q: Have you support the OEM or not?
A: Sure, we support the OEM,BULLDOG or as required.
5. Q: How can i pay the goods?
A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc
6. Q: How to ship the products?
A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.
7. Q: What’s the delivery time?
A: The goods can be shipped at 2-5 working days after receiving payment.
