Bulldog is the premiere provider of sealing solutions for heavy equipment worldwide,offering hydraulic cylinder kits,hydraulic pump seal kits, hydraulic breaker seal kits,hydraulic breaker diaphragms and walking motor seal kits, rock drill seal kits.
| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | BULLDOG,NICEPARTS |
| Model Number: | KOMATSU PC400-7 PC400LC-7 |
| Minimum Order Quantity: | 1set |
| Price: | Consultation by letter |
| Packaging Details: | Carton packaging |
| Delivery Time: | 3-10 Days After Payment received |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal,Alipay |
| Supply Ability: | 200set |

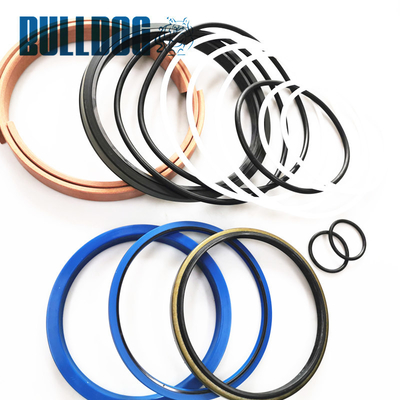

| Type: | KOMATSU Hydraulic Arm Cylinder Repair Seal Kit | Material: | PU+NBR+PTFE |
|---|---|---|---|
| Color: | Black+Blue+yellow | For: | KOMATSU Hydraulic System |
| Quality: | High-Quality | Rod: | 130mm |
| Piston: | 185mm | Condition: | 100%new |
| Stock: | In Stock | Model: | KOMATSU Hydraulic Excavator |
| High Light: | 707-99-69770 Hydraulic Cylinder Seal Kit,PC400-7 Hydraulic Cylinder Seal Kit,707-99-69585 arm cylinder seal kit |
||
Parts list
| Item | Part No. | Part Name |
Qty |
| G-1 | ( 707-01-XT852) | ARM CYLINDER GROUP,(FINAL COATING) | 1 |
| ( 707-01-XT851) | ARM CYLINDER GROUP,(FINAL COATING) | 1 | |
| 707-01-0H082 | CYLINDER ASS'Y | 1 | |
| 707-01-0H081 | CYLINDER ASS'Y | 1 | |
| 1 | 707-13-18760 | CYLINDER | 1 |
| 2 | 707-76-11130 | BUSHING | 1 |
| 3 | 07145-10110 | SEAL,DUST (KIT) | 2 |
| 4 | 707-58-13220 | ROD | 1 |
| 5 | 707-76-11130 | BUSHING | 1 |
| 6 | 07145-10110 | SEAL,DUST (KIT) | 2 |
| 7 | 707-71-31680 | COLLAR | 1 |
| 8 | 707-35-91840 | RING,BACK-UP (KIT) | 2 |
| 9 | 07000-55175 | O-RING (KIT) | 1 |
| 10 | 707-71-61430 | PLUNGER | 1 |
| 11 | 707-71-70340 | PLUNGER | 1 |
| 12 | 04260-00952 | BALL | 11 |
| 13 | 707-71-91230 | CAP | 1 |
| 14 | 707-27-18180 | HEAD | 1 |
| 15 | 707-56-13740 | SEAL,DUST | 1 |
| 16 | 707-88-05040 | COLLAR,RING | 1 |
| 17 | 707-56-13820 | SEAL,DUST (KIT) | 1 |
| 707-56-13650 | SEAL,DUST (KIT) | 1 | |
| 18 | 707-88-05030 | RING | 1 |
| 19 | 707-88-05050 | PLATE | 1 |
| 20 | 707-52-91071 | BUSHING | 1 |
| 21 | 07179-13136 | RING,SNAP | 1 |
| 22 | 707-51-13730 | PACKING,ROD (KIT) | 1 |
| 23 | 707-51-13640 | RING,BUFFER (KIT) | 1 |
| 24 | 707-35-91840 | RING,BACK-UP (KIT) | 1 |
| 25 | 07000-55175 | O-RING (KIT) | 1 |
| 26 | 01011-82425 | BOLT | 8 |
| 27 | 01011-82430 | BOLT | 4 |
| 28 | 707-88-75410 | WASHER | 12 |
| 29 | 707-36-18530 | PISTON | 1 |
| 30 | 01310-01225 | SCREW | 1 |
| 31 | 707-44-18280 | RING,PISTON (KIT) | 1 |
| 32 | 707-39-18510 | RING,WEAR (KIT) | 2 |
| 33 | 707-44-18920 | RING | 2 |
| 34 | 07001-05120 | RING,BACK-UP (KIT) | 2 |
| 35 | 07000-55120 | O-RING (KIT) | 1 |
| 36 | 700-11-31980 | PLATE, NAME | 1 |
| 37 | 707-86-12590 | TUBE | 1 |
| 38 | 707-86-11610 | BLOCK | 1 |
| 39 | 707-88-02960 | PLATE | 1 |
| 40 | 07372-21060 | BOLT | 4 |
| 41 | 01643-51032 | WASHER | 4 |
| 42 | 01011-81005 | BOLT | 4 |
| 43 | 01643-51032 | WASHER | 4 |
| 44 | 07000-53035 | O-RING (KIT) | 2 |
| 45 | 707-88-25450 | BRACKET | 1 |
| 46 | 707-88-21880 | BAND | 1 |
| 47 | 07372-21240 | BOLT | 2 |
| 48 | 01643-51232 | WASHER | 2 |
| 49 | 07283-33442 | CLIP | 2 |
| 50 | 01643-31032 | WASHER | 4 |
| 51 | 01597-01009 | NUT | 4 |
| 52 | 707-88-33040 | CAP | 3 |
| 53 | 07371-31049 | FLANGE,SPLIT | 6 |
| 54 | 07372-21035 | BOLT | 12 |
| 55 | 01643-51032 | WASHER | 12 |
| 707-99-69585 | SERVICE KIT | 1 | |
| 707-99-69770 | SERVICE KIT | 1 |
Parts exploded view
More service models
| KOM-707-98-12450 | D21A-6 | 3-POINT HITCH |
| KOM-707-98-12450 | D21A-6 | 3-POINT HITCH |
| KOM-707-98-05420 | D21A-6 | ANGLE LIFT |
| KOM-707-98-05420 | D21A-6 | ANGLE LIFT |
| KOM-707-98-12490 | D21A-6 | PAT ANGLE |
| KOM-707-98-12510 | D21A-6 | PAT LIFT |
| KOM-707-98-23030 | D21A-6 | PAT TILT |
| KOM-707-98-12450 | D21A-6 | TRIMMING |
| KOM-707-98-12450 | D21A-6 | TRIMMING |
| KOM-707-98-15410 | D21A-6 | TRIMMING LIFT |
| KOM-707-98-15410 | D21A-6 | TRIMMING LIFT |
Company warehouse
FAQ
1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.
2. Q: Can i make a small order first?
A: Yes, of course.
3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.
4. Q: Have you support the OEM or not?
A: Sure, we support the OEM,BULLDOG or as required.
5. Q: How can i pay the goods?
A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc
6. Q: How to ship the products?
A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.
7. Q: What’s the delivery time?
A: The goods can be shipped at 2-5 working days after receiving payment.
